PRODUCT DESCRIPTION

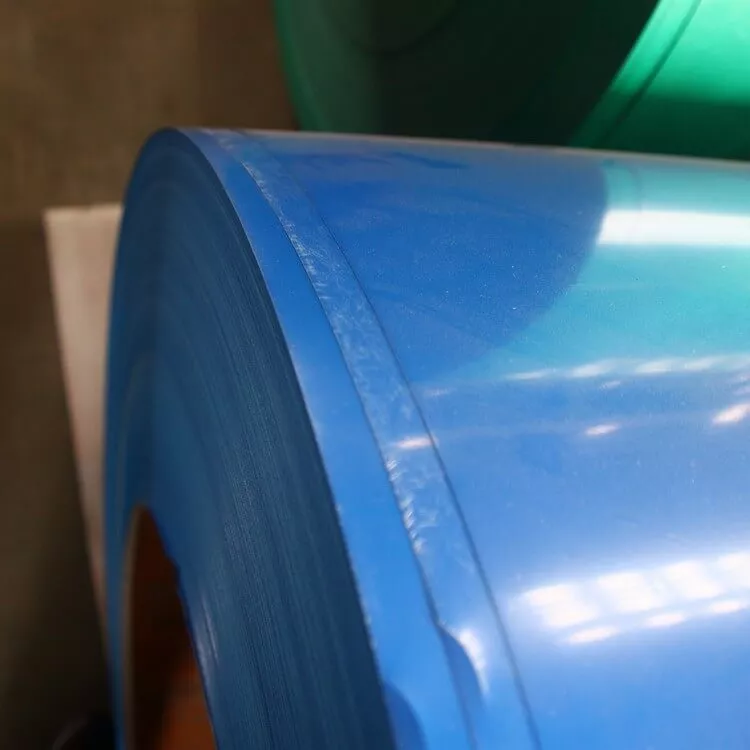

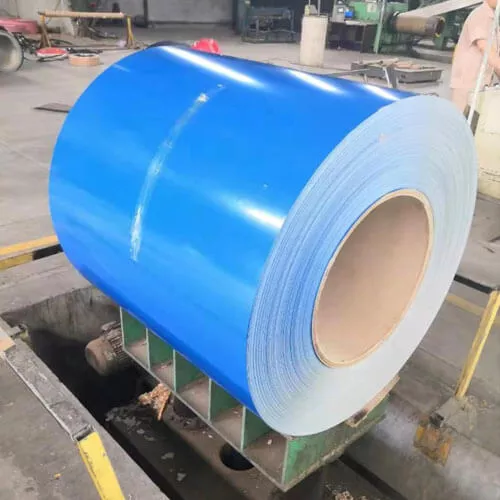

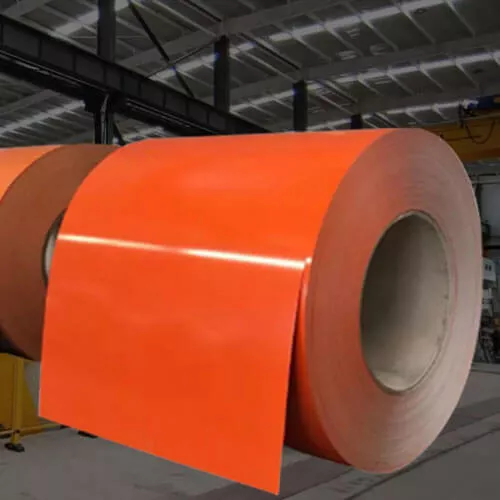

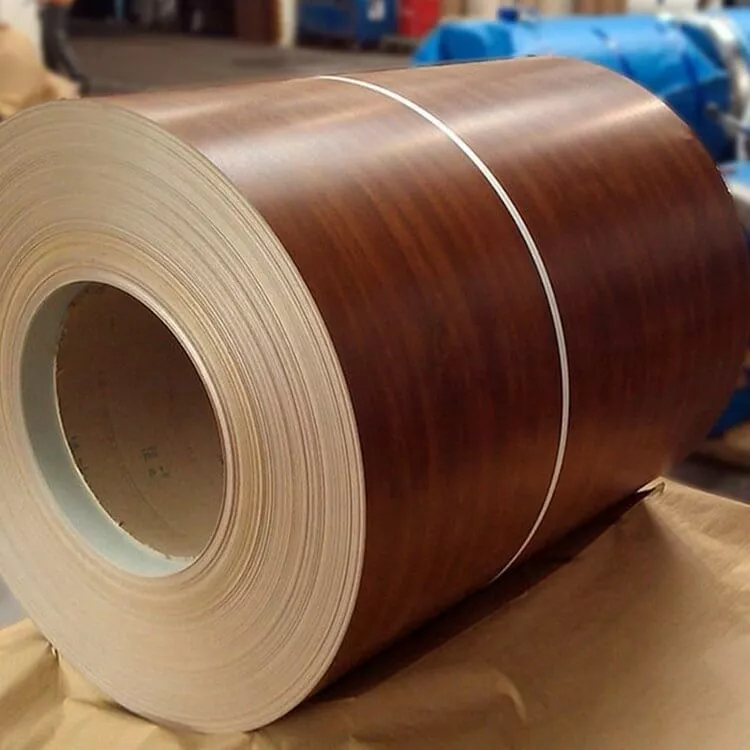

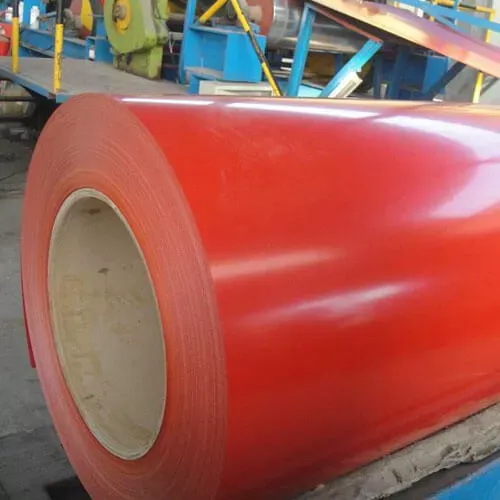

PPGI/color coated galvanized steel coil

PPGI/color coated galvanized steel coil

Shandong Kuaima Iron and Steel Co., Ltd. is a manufacturer specializing in the manufacture of pre-coated steel coils and pre-coated steel

PRODUCT DESCRIPTION

PPGI

PPGI is pre-painted galvanised iron, also known as pre-coated steel, coil coated steel, color coated steel etc., typically with a hot dip zinc coated steel substrate.

The term is an extension of GI which is a traditional abbreviation for Galvanized Iron. Today the term GI typically refers to essentially pure zinc (>99%) continuously hot dip coated steel, as opposed to batch dip processes. PPGI refers to factory pre-painted zinc coated steel, where the steel is painted before forming, as opposed to post painting which occurs after forming.

The hot dip metallic coating process is also used to manufacture steel sheet and coil with coatings of aluminium, or alloy coatings of zinc/aluminium, zinc/iron and zinc/aluminium/magnesium which may also be factory pre-painted. While GI may sometimes be used as a collective term for various hot dip metallic coated steels, it more precisely refers only to zinc coated steel. Similarly, PPGI may sometimes be used as a general term for a range of metallic coated steels that have been pre-painted, but more often refers more precisely to pre-painted zinc coated steel.

Zinc coated steel substrate for PPGI is typically produced on a continuous galvanizing line (CGL). The CGL may include a painting section after the hot dip galvanising section, or more commonly the metallic coated substrate in coil form is processed on a separate continuous paint line (CPL). Metallic coated steel is cleaned, pre-treated, applied with various layers of organic coatings which can be paints, vinyl dispersions, or laminates. The continuous process used to apply these coatings is often referred to as Coil Coating.

The steel thus produced in this process is a prepainted, prefinished and ready for further processing into finished products or components. to use material.

The coil coating process may be used for other substrates such as aluminium, or aluminium, stainless steel or alloy coated steel other than "pure" zinc coated steel. However, only "pure" zinc coated steel is typically referred to as PPGI. For example, PPGL may be used for pre-painted 55%Al/Zn alloy-coated steel (pre-painted GALVALUME(r) steel*)


PRODUCT DESCRIPTION

Product Name

Ppgi Color Prepainted Galvanized Steel Coil In South Africa

Material

SGCC DX51D CGCH CGLCC

Wall Thickness

0.14MM~2MM

Width

40MM~1500MM


Length

Length:Single random length/Double random length

5m-14m,5.8m,6m,10m-12m,12m or as customer's actual reques



Standard

API 5L, ASTM A53-2007, ASTM A671-2006, ASTM A252-1998, ASTM A450-1996, ASME B36.10M-2004, ASTM A523-1996, BS 1387, BS EN10296, BS
6323, BS 6363, BS EN10219, GB/T 3091-2001, GB/T 13793-1992, GB/T9711

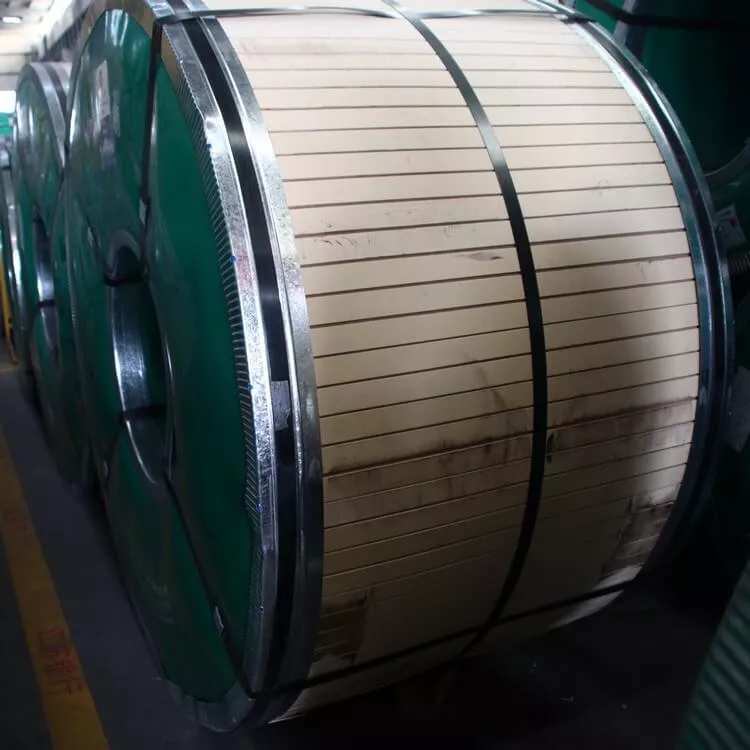

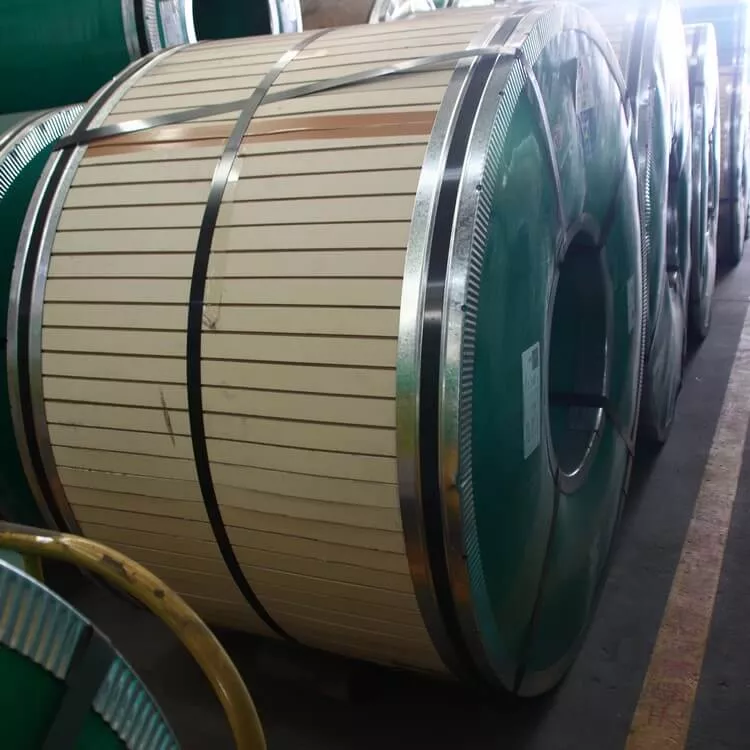

Packing

Bundle, or with all kinds of colors PVC or as your requirements

Pipe Ends

Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc.

MOQ

10 Tons, more quantity price will be lower



Surface Treatment

1. Galvanized

2. PVC,Black and color painting

3. Transparent oil,anti-rust oil

4. According to clients requirement

Product Application

1. Fence, greenhouse, door pipe,greenhouse

2. Low pressure liquid, water, gas, oil, line pipe

3. For both indoor and outdoor the building construction

4. Widely used in scaffolding construction which is much cheaper and convenient

Origin

Tianjin China

Certificates

API ISO9001-2008,SGS.BV

Delivery Time

Usually within 10-45 days after receipt of advance payment
