No. 12 electroplated galvanized wire

No. 12 electroplated galvanized wire Product description

Galvanized Iron Wire is designed to prevent rusting and shiny silver in color. It is solid,durable and extremely versatile, it is widely used by landscapers, craft makers, building and constructions,ribbon manufacturers, jewelers and contractors.Its aversion to rust makes it extremely useful around the shipyard,in the backyard, etc.
Galvanized wire is divided into hot dipped galvanized wire and cold galvanized wire (electro galvanized wire). Galvanized wire has good toughness and flexibility, the maximum amount of zinc can reach 350 g /sqm. With zinc coating thickness, corrosion resistance and other characteristics.
Electro galvanized wire, also called cold galvanized wire, is made of high quality carbon steel wire. The processing of this wire is to use electrolytic equipment for galvanizing. In general, the zinc coating is not very thick, but the electro galvanized wire has enough anti-corrosion and anti-oxidation. In addition, the zinc coating surface is very average, smooth and bright. Electro galvanized wire zinc coated commonly is 8–50 g/m2. This wire is mainly used to make nails and wire ropes, wire mesh and fencing, binding of flowers and wire mesh weaving.
Hot dipped galvanized wire belongs to the primary wire products of galvanization. The common sizes of hot dipped galvanized are from 8 gauge to 16 gauge, we also accept smaller or bigger diameter for customers' choices. Hot dipped galvanized wire with firm zinc coating provides strong corrosion resistance and high tensile strength. This kind of wire is widely used for making handicrafts, woven wire mesh, forming fencing mesh, packing products and other daily uses.

12 gauge Cold electro Gi steel wire dealer

Galvanized Wire Physical properties

Galvanized Wire
Diameter and Tolerance (mm)	Tensile strength （Mpa）	Elongation	Torsion	Zinc Coating Weight （g/㎡）
Diameter and Tolerance (mm)	Tensile strength （Mpa）	%	Times	Hot dipped heavy zinc coated	Hot dipped Normal zinc coated	Electro Galvanized zinc coated
0.2±0.02	350-550	≥15	≥45	≥25	≥15	≥8
0.3±0.025	350-550	≥15	≥45	≥30	≥15	≥10
0.5±0.025	350-550	≥12	≥45	≥40	≥20	≥10
0.7±0.03	350-550	≥10	≥42	≥45	≥40	≥15
0.9±0.03	350-550	≥10	≥33	≥155	≥50	≥15
1.25±0.04	350-550	≥10	≥24	≥180	≥50	≥15
1.6±0.05	350-550	≥10	≥37	≥195	≥50	≥15
2.0±0.05	350-550	≥10	≥30	≥215	≥50	≥15
2.5±0.06	350-550	≥10	≥24	≥245	≥50	≥15
3.15±0.07	350-550	≥10	≥19	≥260	≥50	≥15
4.0±0.07	350-550	≥10	≥15	≥275	≥70	≥15
5.0±0.08	350-550	≥10	≥15	≥280	≥80	≥15
6.0±0.08	350-550	≥10	≥15	≥290	≥80	≥15

All Sizes of Galvanized Steel Wire

Wire Gauge Size	SWG(mm)	BWG(mm)	BG(mm)
6	4.87	5.15	5.032
7	4.47	4.57	4.481
8	4.06	4.19	3.988
9	3.66	3.76	3.551
10	3.25	3.40	3.175
11	2.95	3.05	2.827
12	2.64	2.77	2.517
13	2.34	2.41	2.24
14	2.03	2.11	1.994
15	1.83	1.83	1.775
16	1.63	1.65	1.588
17	1.42	1.47	1.412
18	1.22	1.25	1.257
19	1.02	1.07	1.118
20	0.91	0.89	0.996
21	0.81	0.813	0.887
22	0.71	0.711	0.749
23	0.61	0.635	0.707
24	0.56	0.559	0.629
25	0.51	0.508	0.56
26	0.46	0.457	0.498

Product Specification of Galvanized Steel Wire

Product name	Galvanized steel wire
Type	Loop tie wire
Function	Binding wire, Construction wire mesh maunfacturing
Material	Q195 / Q235
Certification	BSCI, TUV, SGS, ISO, etc
Product packaging size	65cm65cm8cm
Gross weight	500kg
Packing	Plastic inner and outer knitting, inner plastic outer hemp, carton, pallet

call us now！ +86-18365977887 Or write to us at Echo@kuaimasteel.com

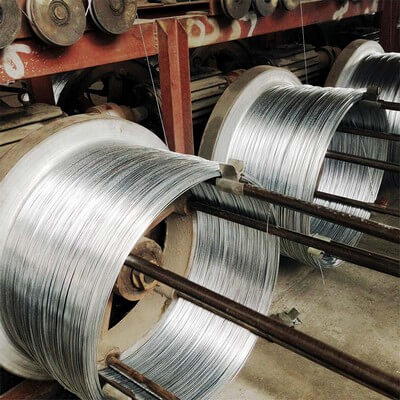

Galvanized steel wire PRODUCTION LINE

Shandong Kuaima Steel Co., Ltd. has advanced special smelting, investment casting, pipe making and other production equipment. The company has 15 advanced production lines, which can independently produce hot/cold rolled steel, galvanized steel, galvanized steel, prepainted steel and stainless steel coils, Galvanized steel wire,strips, plates, plates, pipes, bars and other products. The standing inventory is more than 450,000 tons to meet the customer's demand for delivery time.

Hot Products

5 gauge galvanized steel wire rope prices per ton	galvanized steel wire 20 gauge
6-gallon galvanized steel locking-lid can wire	galvanized steel wire 9 gauge
72 in galvanized steel wire round tomato cage	galvanized steel wire factory
8 gauge galvanized steel wire for sale	galvanized steel wire manufacturer
8 l double-loop galvanized steel wire ties	galvanized steel wire manufacturers
9 16 1x7 ehs guy wire galvanized steel 100ft	galvanized steel wire rope manufacturers
9 galvanized steel tension wire muscadine trellis wire	high carbon galvanized steel wires
9 gauge galvanized steel wire diameter	galvanized wire steel

Galvanized steel wire QUALITY INSPECTION

We have professional testing equipment. We have our own testing center laboratory to guarantee the quality of our products.

thickness
width
coating quality
chromatic aberration
paint
thickness
hardness
luster
tensile strength
Yield Strength

Galvanized Products application industry

Machinery manufacturing industry
Oil & Gas Industries
Construction industry
Shipbuilding industry
Chemical industry
Power Generation

COUNTRIES EXPORTED

We are a world-renowned Galvanized steel wire exporter, Qatar, Ireland, Portugal,Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Italy, Libya, Ro-Fanaticism, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Philippines, Ghana, Slovakia, Germany,Saudi Arabia, Afghanistan, China, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece,Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus,Finland, Gabon, Iran, Canada, Argentina, Lebanon. other countries
