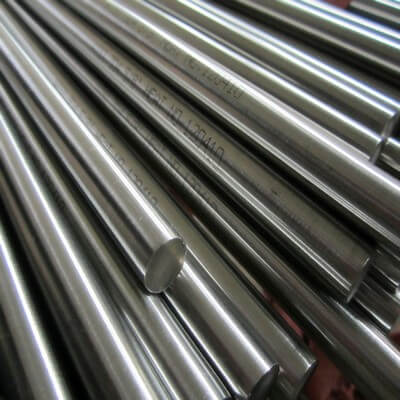

monel 400 round bar

Monel 400 Round Bar introduction

Magellan Metals offers Monel 400® in a variety of forms, including:Pipe & Welded pipe，Pipe fittings，Seamless tube & Welded tube，Flanges，Bar，Sheet，Wire，Plate，Forgings，Weld Wire

Monel 400® sheet is available in thicknesses ranging from .018 to .140". Monel 400® strip in coil from is available in lighter gauges up 24" wide. Monel 400® plate is available up 3" thick.

Monel 400® bar is available in wrought bar up to 11" diameter and larger sizes and shapes may be forged to order.

Monel 400® seamless pipe is available up to 8" NB. Larger sizes are available in welded construction (100% X-ray) and can also be fabricated to order. Monel 400® tubing is available up 3". Monel 400® redrawn tubes and tubing with tight tolerances can be supplied in almost any size no matter how small the size or quantity.

Chemical Composition of Monel 400 Round Bar

Chemical Composition
Grade	Ni%	Cu%	Fe%	Mn%	C%	Si%	S%
Monel 400	Min 63	28-34	Max 2.5	Max 2.0	Max 0.30	Max 0.50	Max 0.024

Physical Properties of Monel 400 Round Bar

Physical Properties
Grade	Density	Melting Point
Monel 400	8.83 g/cm3	1300℃-1390℃

Mechanical Properties of Monel 400 Round Bar

Mechanical Properties
Alloy	Tensile Strength (Rm N/mm2)	Yield strength (RP0.2N/mm2)	Elongation(A5%)	HB
Monel 400	480	170	35	≥331

Product Specification of Monel 400 Round Bar

Grade	Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L
	Others: 253Ma,254SMo,654SMo,F50(UNS S32100)F60,F61,F65,1J22,N4,N6 etc
	Alloy : Alloy 20/28/31;
	Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g;
	Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 / DIN W. Nr. 2.4617,Hastelloy C,Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602,Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665
	Haynes: Haynes 230/556/188;
	Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851, Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725,Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816
	Monel: Monel 400/K500/R405
	Nimonic: Nimonic 40/50/6075/80A/90/A263 ;
Surface Finish	polish bright black
Standard	JIS/SUS/GB/DIN/ASTM/AISI/EN
Technique	Cold Rolled; Hot Rolled
Diameter	3-480mm
Length	3000mm, 4000mm,5800mm,6000mm,12000mm,or as required.
Application	Widely used in petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper making,shipbuilding,boiler fields.
Lead Time	7-15 working days after the receipt of 30% deposit
Payment Terms	30% TT for deposit,70% TT /70% LC at sight balance before shipment
Price Terms	FOB, EXW, CIF, CFR
Packing	Standard Seaworthy Package or according to customer's requirements
Container Size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM

call us now！ +86-18365977887 Or write to us at Echo@kuaimasteel.com

Alloy Rod Production Line

Shandong Kuaima Steel Co., Ltd. has advanced special smelting, investment casting, pipe making and other production equipment. The company has 15 advanced production lines, which can independently produce hot/cold rolled steel, galvanized steel, galvanized steel, alloy rod,prepainted steel and stainless steel coils, strips, plates, plates, pipes, bars and other products. The standing inventory is more than 450,000 tons to meet the customer's demand for delivery time.

hot sale product

china alloy steel rod quotes	alloy seamless steel rod
alloy steel rod seamless	alloy steel round bar
china alloy steel rod pricelist	alloy steel rod manufacturers in china
alloy steel rod distributors	alloy steel rod quotes
4130 alloy steel rod	alloy pipe seamless steel rod
alloy steel rod	alloy steel seamless rod pricelist
alloy steel rod exporter	uses of alloy steel rod
alloy steel round rod manufacturer	types of alloy steel rod

Alloy steel rod

We have professional testing equipment. We have our own testing center laboratory to guarantee the quality of our products.

thickness
width
coating quality
chromatic aberration
paint
thickness
hardness
luster
tensile strength
Yield Strength

Alloy steel rod applications industry

Machinery manufacturing industry
Oil & Gas Industries
Construction industry
Shipbuilding industry
Chemical industry
Power Generation

Alloy steel rod outlet

We are a world-renowned Alloy steel rod exporter, Qatar, Ireland, Portugal,Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Italy, Libya, Ro-Fanaticism, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Philippines, Ghana, Slovakia, Germany,Saudi Arabia, Afghanistan, China, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece,Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus,Finland, Gabon, Iran, Canada, Argentina, Lebanon. other countries
