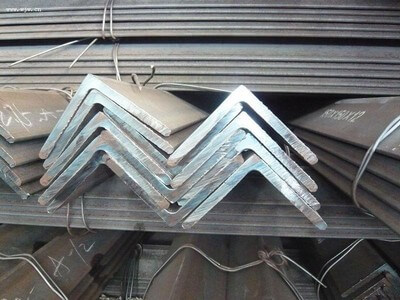

Galvanized L shaped Angle Steel
Gi L Shaped Steel Angle is to soak the rust-treated angle steel into molten zinc, so that the outer layer of the base steel adheres to the fine-textured zinc layer, thus exerting the purpose of anti-erosion, making it more suitable for use in various types of strong acid, Alkali, fog and other strong corrosion environment.
1. The angular structure makes it have good supporting strength.
2. Under the same support strength, the weight of the angle steel is lighter, the material consumption is less, and the cost is saved.
3. The construction is more flexible and takes up less space.
Because of its high cost performance, angle steel is widely used in building construction, bridges, tunnels,In many fields such as wire towers, ships, brackets, steel structures, etc., it plays the role of supporting or fixing structures use.
Product name | Gi L Shaped Steel Angle | ||
Classification | Equal Angle Steel & Unequal Angle Steel | ||
Standard | GB/T9787-88,JIS G3192:2000,JIS G3101:2004,BS EN10056-1:1999.BS EN10025-2:2004 | ||
Materials | Q235B,Q345B,SS400,SS540,S235JR,S235JO,S235J2,S275JR,S275JO,etc. | ||
Specification | 20*20*2mm--200*200*25mm, or customized | ||
Surface treatment | Hot dip galvanized or hot rolled angle steel | ||
Delivery terms | FOB, CIF, CFR, EXW | ||
Packing detail | With bundle, as per standard seaworthy package or as customer's requirement | ||
Application | Construction and machine structure pipe, building material tube, agriculture equipment, water and gas pipe, etc. |
Specification(mm) | Theoretical weight(kg/m) | Specification(mm) | Theoretical weight(kg/m) |
25*25*2.5 | 0.98 | 90*90*7 | 9.59 |
25*25*3 | 1.12 | 90*90*8 | 10.90 |
30*30*2.5 | 1.17 | 90*90*9 | 9.59 |
30*30*3 | 1.36 | 90*90*10 | 13.30 |
30*30*4 | 1.78 | 100*100*6 | 9.22 |
30*30*5 | 2.16 | 100*100*7 | 10.70 |
38*38*3 | 1.72 | 100*100*8 | 12.1 |
38*38*4 | 2.26 | 100*100*10 | 14.90 |
40*40*3 | 1.83 | 100*100*12 | 17.90 |
40*40*4 | 2.41 | 100*100*13 | 19.10 |
40*40*5 | 2.92 | 110*110*7 | 11.92 |
40*40*6 | 3.50 | 110*110*8 | 13.47 |
45*45*4 | 2.74 | 110*110*10 | 16.69 |
45*45*5 | 3.38 | 125*125*8 | 15.51 |
50*50*3 | 2.33 | 125*125*10 | 19.14 |
50*50*4 | 3.06 | 125*125*12 | 22.70 |
50*50*5 | 3.77 | 130*130*9 | 17.90 |
50*50*6 | 4.43 | 130*130*10 | 19.70 |
50*50*8 | 5.82 | 130*130*12 | 23.40 |
55*55*5 | 4.17 | 130*130*15 | 28.80 |
56*56*4 | 3.493 | 140*140*10 | 21.49 |
56*56*5 | 4.326 | 140*140*12 | 25.52 |
60*60*4 | 3.68 | 140*140*14 | 29.49 |
60*60*5 | 4.55 | 150*150*12 | 27.30 |
60*60*6 | 5.41 | 150*150*15 | 33.60 |
60*60*8 | 7.09 | 150*150*16 | 35.80 |
63*63*5 | 4.81 | 160*160*12 | 29.39 |
63*63*6 | 5.72 | 160*160*14 | 33.99 |
63*63*7 | 6.54 | 160*160*16 | 38.52 |
65*65*5 | 5.00 | 175*175*12 | 31.80 |
65*65*6 | 5.91 | 175*175*15 | 39.40 |
65*65*8 | 7.66 | 180*180*12 | 33.16 |
70*70*5 | 5.76 | 180*180*14 | 38.38 |
70*70*6 | 6.38 | 180*180*16 | 43.54 |
70*70*7 | 7.35 | 180*180*18 | 48.63 |
70*70*8 | 8.37 | 200*200*14 | 42.90 |
75*75*6 | 6.85 | 200*200*15 | 45.30 |
75*75*8 | 8.92 | 200*200*18 | 54.40 |
75*75*9 | 9.96 | 200*200*20 | 59.70 |
75*75*10 | 11.02 | 200*200*25 | 73.60 |
80*80*6 | 7.32 | 250*250*20 | 76.18 |
80*80*7 | 8.48 | 250*250*25 | 93.77 |
80*80*8 | 9.55 | 250*250*28 | 104.00 |
80*80*10 | 11.87 | 250*250*30 | 111.32 |
90*90*6 | 8.28 | 250*250*35 | 128.00 |
Shandong Kuaima Steel Co., Ltd. has advanced special smelting, investment casting, pipe making and other production equipment. The company has 15 advanced production lines, which can independently produce hot/cold rolled steel, galvanized steel, galvanized steel, prepainted steel and stainless steel coils,galvanized angle steel,strips, plates, plates, pipes, bars and other products. The standing inventory is more than 450,000 tons to meet the customer's demand for delivery time.
right angle stainless steel brackets | 90 degree angle stainless steel |
slotted angle stainless steel | 90 degree stainless steel angle bracket |
small stainless steel angle brackets | architectural Gi L-beam angle |
Gi L-beam angle brackets home depot | brushed stainless steel angle |
Gi L-beam angle finder | brushed stainless steel angle trim |
Gi L-beam angleglobe valve | buy Gi L-beam angle |
Gi L-beam angle grinder blade | china polished Gi L-beam angle |
Gi L-beam angle home depot | drill angle forGi L-beam angle |
We have professional testing equipment. We have our own testing center laboratory to guarantee the quality of our products.
thickness
width
coating quality
chromatic aberration
paint
thickness
hardness
luster
tensile strength
Yield Strength
We are a world-renowned Galvanized angle steel exporter, Qatar, Ireland, Portugal,Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Italy, Libya, Ro-Fanaticism, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Philippines, Ghana, Slovakia, Germany,Saudi Arabia, Afghanistan, China, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece,Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus,Finland, Gabon, Iran, Canada, Argentina, Lebanon. other countries.
