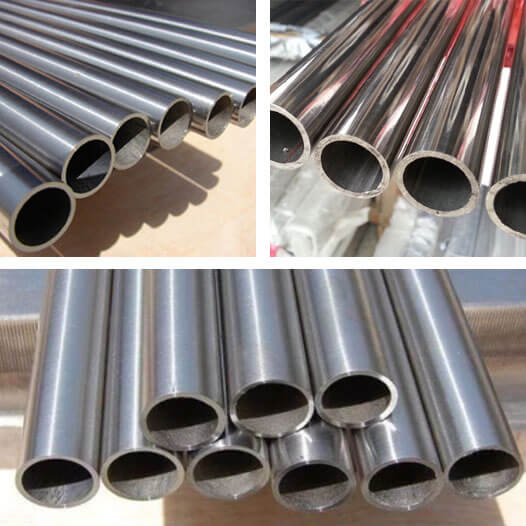

STAINLESS STEEL CAPILLARY
Stainless Steel Capillary Tube is produced making use of rigid material that helps in facilitating capillary action in the system. The action of capillary flow can take place in the vertical or horizontal direction. The Stainless Steel Seamless Capillary Tubing is amongst the strongest type of tubes in this range that is produced via an extrusion process, allowing the tubes to be cognizant with different service requirements.
email
enquire now
A capillary tube is an instrument utilized for measurement in different systems. The thickness of these tubes is measured based on their outer diameter. The wall thickness of these tubes has a standard gauge reading between 7 to 22 that corresponds to different thicknesses.
The SS 1/16 In. Precision Tubing is a precise flexible component that is utilized in creating a soft grip on an array of components. These tubes allow for flow to take place in an upward direction that is against the force of gravity. The 304L Industrial Capillary Tubes is a low carbon grade that showcases outstanding strength and tolerance allowing them to work in harsh environments. These tubes are commonly seen in pressure meters, sheath tubing, Coriolis tubing, sensors, hydraulic tubing systems, pressure transducers, etc. Our institution has contacts with the best supply and logistical chains allowing us to deliver products in a short span of time. For any queries and questions about our products or their price point, contact us or visit us for more.
| STAINLESS STEEL CAPILLARY TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
| Stainless Steel Capillary Tube Size Range | 0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm. |
| Stainless Steel Capillary Tube Suppliers Thickness | 1mm to 20mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10 |
| Stainless Steel Capillary Tube Wall Thickness | 0.08 – 0.2 mm |
| Stainless Steel Capillary Tube Outside Diameter | 0.3 –12.0 mm |
| Stainless Steel Capillary Tube Specification | ASME / ASTM A213, ASTM A688 / A688M - 08, ASTM A803 / A803M, ASTM A556 / A556M, ASME SA556, ASME SA688 |
| Stainless Steel Capillary Tube Material | SS 304, SS 304L, SS 316, SS 316L |
| Stainless Steel Capillary Tube Finish | Pickled, Polished, Bright Annealed, Electrolytic Polished |
| Stainless Steel Capillary Tube Form | Round, Strait, Hydraulic etc. |
| Stainless Steel Capillary Tube Type | As Welded, EFW, ERW, Seamless, Semi Seamless, Bead Removed |
| Stainless Steel Capillary Tube Mill Test Certificate | EN10204 3.1 |
| Stainless Steel Capillary Tube Packing | Sleeved, Ends Capped, Wooden Boxed |
Shandong Kuaima Steel Co., Ltd. has advanced special smelting, investment casting, pipe making and other production equipment. The company has 15 advanced production lines, which can independently produce hot/cold rolled steel, galvanized steel, galvanized steel, prepainted steel and stainless steel coils, Stainless Steel Capillary Tube,strips, plates, plates, pipes, bars and other products. The standing inventory is more than 450,000 tons to meet the customer's demand for delivery time.
