Stainless Steel Boiler Tube
Supply high quality 304/316/duplex SS tube in various size, shape, grade, Get A Quote Now! Hot selling Stainless Steel Boiler Tube. Our company has abundant stock and good quality products, welcome to contact us.
email
enquire now

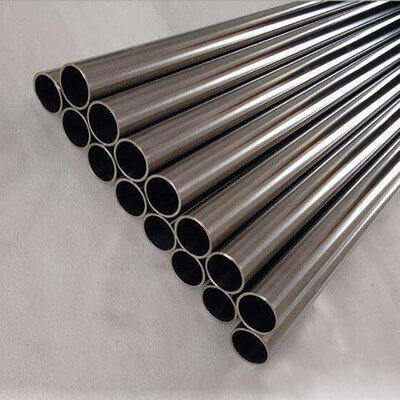

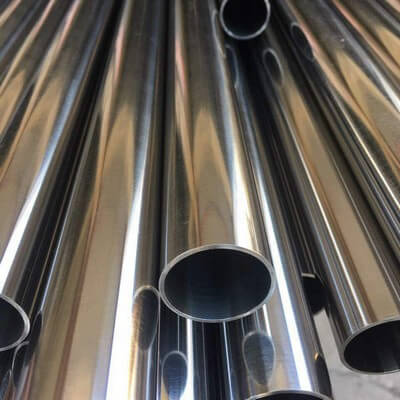

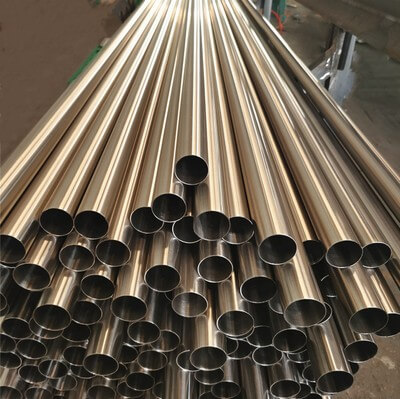

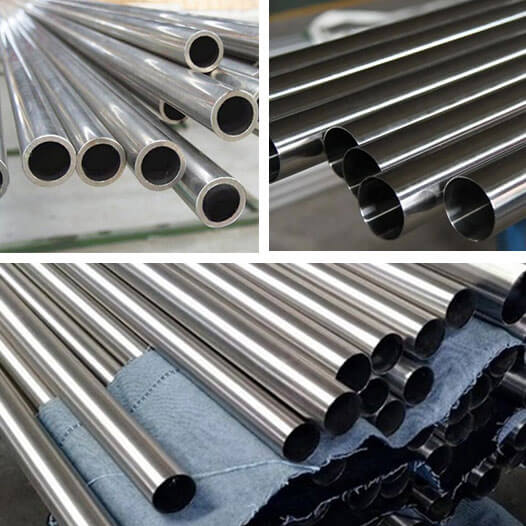

Stainless Steel Boiler Tube is supplied as hot rolled or cold drawn. Generally, these SS Boiler Tubing have smaller diameter tubes and have thick wall tubes of larger diameters which are supplied as cold drawn and subsequently they are heat treated. Stainless Steel Boiler Tubes are available in various custom-made sizes and shapes at affordable rates to our customers.
We have a wide range of grades such as 304 Stainless Steel Boiler Tube, 304L Stainless Steel Boiler Tube, 316 Stainless Steel Boiler Tube, 316L Stainless steel Boiler Tube and 201 Stainless Steel Boiler Tube. We manufactured Stainless Steel Boiler Tube as per national and international standards.
| STAINLESS STEEL Boiler TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
| Specifications | ASTM A213, ASTM A249, ASTM A269 |
| Range | 6.35 mm OD upto 152.4 mm OD in 0.6 TO 10 mm thickness. |
| Outside Diameter | From 6mm~2500mm |
| Length | 5.8m,6m random length or acording to customer’s requests |
| Thickness | From 0.5mm-150mm (SCH5 ,SCH10,SCH20,SCH30,STD,SCH40,SCH60, XS,SCH80,SCH100,SCH120,SCH140,SCH160, XXS) |
| Grades | TP - 304,304L,316,316L,201 |
| STAINLESS STEELS – Austenitic stainless steels | |
| Austenitic stainless steels are presented in the ASME Boiler and Pressure Vessel Code with two sets of allowable stresses. The reason for this is their relatively low yield strength. The higher allowable stress values were determined at temperatures where the usage would be restricted by the short-time tensile properties. The higher stresses exceed 62-1/2%, but do not exceed 90% of the yield strength. At these stresses, small amounts of plastic deformation can be expected. These higher stress values are usually used for super-heater and reheater tubing. | |
| The Boiler Code lists maximum allowable stresses for varying temperatures depending on the individual austenitic stainless grade. | |
| SA213-T304 | Variations of this 18 chromium, 8 nickel grade include 304L, 304LN, 304H and 304N. Each of these offers excellent corrosion and oxidation resistance along with high strength. |
| High strengths are maintained in the low carbon grades by controlling the nitrogen content. | |
| T304 has higher carbon and a minimum solution annealing temperature to assure good long-time elevated temperature strengths. T304 grades are limited to 1650F under oxidizing conditions. Section I of the ASME Boiler Code lists allowable stresses up to 1500F. | |
| SA213-T316 | T316 is similar to T304, but offers better corrosion resistance and creep strength. The molybdenum addition to 316 increases its resistance to pitting and crevice corrosion. Variations of this grade include 316L, 316LN, 316H and 316N. |
| SA213-T321 and T347 | T321 and 347 are variations of T304 and have comparable minimum tensile properties. These two grades are stabilized with additions of titanium and columbian respectively, along with proper heat treatment. To insure good long-time strength at elevated temperatures, T321H and 347H-like 304H-were developed with higher carbon contents and specified minimum solution annealing temperatures. |
| Of all the stainless steels, T309 (25 chromium, 13 nickel) and T310 (25 chromium, 20 nickel) offer the maximum resistance to oxidation and corrosion. They also offer good high-temperature properties. Since these steels contain ferrite, however, they are more susceptible to sigma phase. | |
Shandong Kuaima Steel Co., Ltd. has advanced special smelting, investment casting, pipe making and other production equipment. The company has 15 advanced production lines, which can independently produce hot/cold rolled steel, galvanized steel, galvalume steel, prepainted steel and Stainless Steel Boiler Tube,strips, plates, plates, pipes, bars and other products. The standing inventory is more than 450,000 tons to meet the customer's demand for delivery time.
| boiler stainless steel pipe factory | boiler steel pipe manufacturers |
| boiler stainless steel pipe manufacturer | boiler steel pipe quotes |
| boiler stainless steel pipe manufacturers | boiler steel pipe supplier |
| boiler stainless steel pipe supplier | carbon steel boiler pipe supplier |
| boiler stainless steel pipe suppliers | carbon steel erw boiler pipe |
| boiler steel pipe factories | cheap boiler steel pipe |
| boiler steel pipe factory | china alloy boiler steel pipe |
| boiler steel pipe manufacturer | china alloy steel boiler pipe |
We have professional testing equipment. We have our own testing center laboratory to guarantee the quality of our products.
thickness
width
coating quality
chromatic aberration
paint
thickness
hardness
luster
tensile strength
Yield Strength
We are a world-renowned Stainless Steel Boiler Tube exporter, Qatar, Ireland, Portugal,Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Italy, Libya, Ro-Fanaticism, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Philippines, Ghana, Slovakia, Germany,Saudi Arabia, Afghanistan, China, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece,Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus,Finland, Gabon, Iran, Canada, Argentina, Lebanon. other countries
