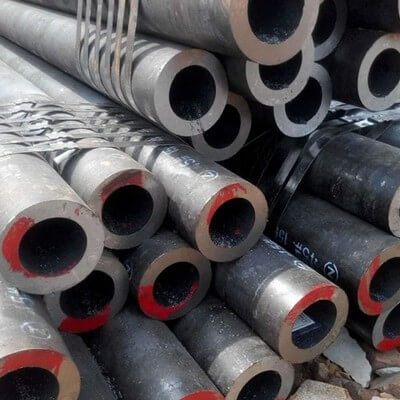

Product Description of seamless boiler tubes
Boiler tubes and pipes require extremely superior quality and avariety of steel grades and dimensions suited to usagesituations.our boiler tubes and pipeshave emerged from a secure system through years of experi-ence and foremost engineering prowess, Thus, our boiler tubes and pipes that have a superior track recordand receive a high level of trust.
1. Look at the cross-section of the tube. A good quality seamless tube will have a smooth cross-section and will be devoid of bumps and irregularities.
2. Check the density of the pipe to understand the percentage of impurities in the pipe. If the pipe shows low density, steer clear!
3. Check the surface of the boiler tube. A good quality boiler tube will have a smooth surface. If you find the surface to be rough and uneven, you can be sure that the quality is not up to the mark.
Speci -cation | Grade | Chemical Composition [%] | Mechanical Properties | |||||||||||||||||||
C | Mn | P | S | Si | Cr | Mo | Cu | Ni | V | Yield Strength | Tensile Strength | % Elongation (G.L. 50 mm WT 8 mm) e (min.) | ||||||||||
Min. | Min. | |||||||||||||||||||||
Min | Max. | Min | Max. | Max. | Max. | Min. | Max | Min. | Max | Min. | Max | Max | Max | Max | PSI | MPa | PSI | MPa | ||||
SEAMLESS COLD DRAWN PRECISION STEEL TUBES FOR MECHANICAL APPLICATIONS/HYDRAULIC/PNEUMATIC POWER SYSTEMS | ||||||||||||||||||||||
EN 10305-1/ EN10305-4 | E 235 E 355 | 0.17 0.22 | 1.2 1.6 | 0.025 0.025 | 0.025 0.025 |
| 0.35 0.55 | 0.02 0.02 | 235 355 | 340 490 | 25 22 | |||||||||||
EN 10216-1 | P195 TR1 P235 TR1 | 0.13 0.16 | 0.7 1.2 | 0.025 0.025 | 0.02 0.02 | 0.35 0.35 | 0.3 0.3 | 0.08 0.08 | 0.3 0.3 | 0.3 0.3 | 195 235 | 320 360 | 27 25 | |||||||||
EN 10216-2 | P235 GH | 0.16 | 1.2 | 0.025 | 0.02 | 0.35 | 0.3 | 0.08 | 0.3 | 0.3 | 0.02 | |||||||||||
DIN 2391 | St - 45 St - 45 St - 52 | - - - | 0.17 0.21 0.22 | 0.40 0.40 - | - - 1.60 | 0.025 0.025 0.025 | 0.025 0.025 0.025 | - - - | 0.35 0.35 0.55 | - - - | - - - | - - - | - - - | - - - | - - - | - - - | NBK : 215 / GBK : - NBK : 255 / GBK : - NBK : 355 / GBK : - | NBK : 340 / GBK : 315 NBK : 440 / GBK : 390 NBK : 490 / GBK : 490 | NBK : 470 NBK : 570 NBK : 630 | |||
ASTM A-519 | SAE 1010 SAE 1018 SAE 1026 SAE 1035 SAE 1040 SAE 1518 SAE 1541 SAE 4130 | 0.08 0.15 0.22 0.32 0.37 0.15 0.36 0.28 | 0.13 0.20 0.28 0.38 0.44 0.21 0.44 0.33 | 0.30 0.60 0.60 0.60 0.60 1.10 1.35 0.40 | 0.60 0.90 0.90 0.90 0.90 1.40 1.65 0.60 | 0.040 0.040 0.040 0.040 0.040 0.040 0.040 0.040 | 0.050 0.050 0.050 0.050 0.050 0.050 0.050 0.040 | - - - - - - - 0.15 | - - - - - - - 0.35 | - - - - - - - 0.80 | - - - - - - - 1.10 | - - - - - - - 0.15 | - - - - - - - 0.25 | - - - - - - - - | - - - - - - - - | - - - - - - - - | As per Customer requirements | |||||
BOILER/HEAT EXCHANGER/SUPERHEATER & CONDENSER TUBES | ||||||||||||||||||||||
ASTM A179 | - | 0.06 | 0.18 | 0.27 | 0.63 | 0.035 | 0.035 | - | - | - | - | - | - | - | - | - | 26,000 | 180 | 47,000 | 325 | 35 | |
ASTM A192 | 0.06 | 0.18 | 0.27 | 0.63 | 0.035 | 0.035 | - | 0.25 | - | - | - | - | - | - | - | 26,000 | 180 | 47,000 | 325 | 35 | ||
ASTM A 210 | A-1 C | - - | 0.27 0.35 | - 0.29 | 0.93 1.06 | 0.035 0.035 | 0.035 0.035 | 0.10 0.10 | - - | - - | - - | - - | - - | - - | - - | - - | 37,000 40,000 | 255 275 | 60,000 70,000 | 415 485 | 30 30 | |
ASTM A 213 | T-11 T-12 T-22 | 0.05 0.05 0.05 | 0.15 0.15 0.15 | 0.30 0.30 0.30 | 0.60 0.61 0.60 | 0.025 0.025 0.025 | 0.025 0.025 0.025 | 0.50 - - | 1.00 0.50 0.50 | 1.00 0.80 1.90 | 1.50 1.25 2.60 | 0.44 0.44 0.87 | 0.65 0.65 1.13 | - - - | - - - | - - - | 30,000 32,000 30,000 | 205 220 205 | 60,000 60,000 60,000 | 415 415 415 | 30 30 30 | |
ASTM A335 | P-11 P-12 P-22 | 0.05 0.05 0.05 | 0.15 0.15 0.15 | 0.30 0.30 0.30 | 0.60 0.61 0.60 | 0.025 0.025 0.025 | 0.025 0.025 0.025 | 0.50 - - | 1.00 0.50 0.50 | 1.00 0.80 1.90 | 1.50 1.25 2.60 | 0.44 0.44 0.87 | 0.65 0.65 1.13 | - - - | - - - | - - - | 30,000 32,000 30,000 | 205 220 205 | 60,000 60,000 60,000 | 415 415 415 | 30 30 30 | |
BS 3059 Pt I | 320 | - | 0.16 | 0.30 | 0.70 | 0.040 | 0.040 | 0.10 | 0.35 | - | - | - | - | - | - | - | 28,000 | 195 | 46,000 | 320 | 69,500 | |
BS 3059 Pt II | 622-490 | 0.08 | 0.15 | 0.40 | 0.70 | 0.030 | 0.030 | - | 0.50 | 2.00 | 2.50 | 0.90 | 1.20 | - | - | - | 40,000 | 275 | 71,000 | 490 | 93,000 | |
DIN 1629 | St- 37.0 St - 52 | - - | 0.17 0.22 | - - | - - | 0.040 0.040 | 0.040 0.035 | - - | - - | - - | - - | - - | - - | - - | - - | - - | WT 16mm = 235 / WT>16mm = 225 WT 16mm = 355 / WT>16mm = 345 | 350 - | - Long 21 / Trans 19 | |||
DIN 17175 | St - 35.8 St - 45.8 | - - | 0.17 0.21 | 0.40 0.40 | 0.80 1.20 | 0.040 0.040 | 0.040 0.040 | 0.10 0.10 | 0.35 0.35 | - - | - - | - - | - - | - - | - - | - - | WT 16mm = 235 / WT>16mm = 225 WT 16mm = 255 / WT>16mm = 245 | 360 410 | 480 530 |

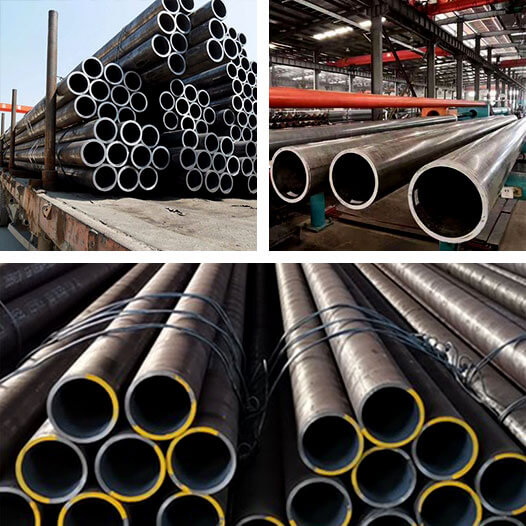

Product Name | Seamless steel Pipe |
Material | GR.B,ST52, ST35, ST42, ST45,X42, X46, X52, X56, X60, X65, X70,SS304, SS316 etc. |
Size | Size 1/4" to 24" Outside Diameter 13.7 mm to 610 mm |
Standard | API5L , ASTM A106 Gr.B, ASTM A53 Gr.B,ANSI A210-1996, ANSI B36.10M-2004 , ASTM A1020-2002,ASTM A179-1990 ,BS 3059-2,DIN 17175 ,DIN 1630 ,DIN 2448
|
Certificates | API5L, ISO 9001:2008,SGS, BV,CCIC |
Wall thickness | SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS |
Surface Treatment | black paint, varnish, oil, galvanized, anti corrosion coatings |
Marking | Standard marking, or according to your request. Marking Method: Spray white paint |
Pipe Ends | Under 2 inch plain end. 2 inch and above Beveled. Plastic caps (small OD) ,Iron protector (large OD) |
Pipe Length | 1. Single Random Length and double Random Length. 2. SRL:3M-5.8M DRL:10-11.8M or As clients requested length 3. fixed length(5.8m, 6m, 12m) |
Packaging | Loose package; Packaged in bundles(2Ton Max); bundled pipes with two slings at the both end for easy loading and discharging; End with Plastic caps; wooden cases. |
Test | Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing , X-ray Test. |
Application | liquid delivery; Structure pipe; High and low pressure Boiler tube; Seamless steel tubes for petroleum cracking; oil pipe; gas pipe |
Advantages | 1.Reasonable price with excellent quality 2.Abundant stock and prompt delivery 3.Rich supply and export experience, sincere service 4.Reliable forwarder, 2-hour away from port. |

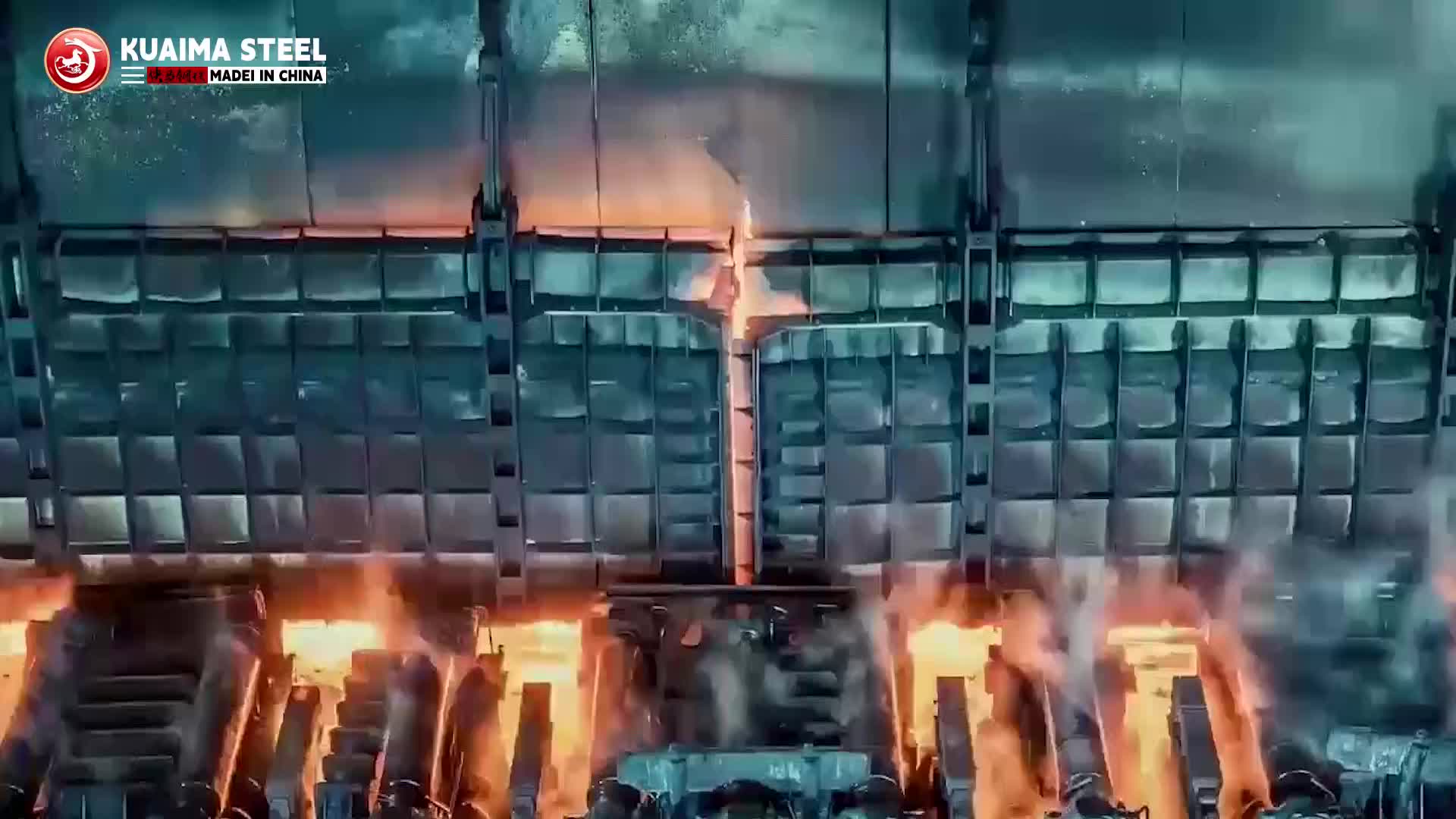

Shandong Kuaima Steel Co., Ltd. has advanced special smelting, investment casting, pipe making and other production equipment. The company has 15 advanced production lines, which can independently produce boiler seamless steel pipe hot/cold rolled steel, galvanized steel, galvanized steel, prepainted steel and stainless steel coils, strips, plates, plates, pipes, bars and other products. The standing inventory is more than 450,000 tons to meet the customer's demand for delivery time.
seamless steel boiler pipe | steel boiler pipe manufacturer |
seamless steel boiler pipe exporter | steel boiler pipe supplier |
seamless steel boiler pipe factory | steel pipe boiler tube |
seamless steel boiler pipe manufacturer | steel pipe boiler tube factory |
seamless steel boiler pipe supplier | steel pipe for boiler |
seamless steel carbon boiler pipes | wholesale boiler stainless steel pipe |
seamless steel carbon boiler pipes factory | wholesale stainless steel boiler pipe |
seamless steel carbon boiler pipes supplier | a106 seamless steel boiler pipe factory |
We have professional testing equipment. We have our own testing center laboratory to guarantee the quality of our products.
thickness
width
coating quality
chromatic aberration
paint
thickness
hardness
luster
tensile strength
Yield Strength
We are a world-renowned seamless boiler tubes exporter, Qatar, Ireland, Portugal,Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Italy, Libya, Ro-Fanaticism, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Philippines, Ghana, Slovakia, Germany,Saudi Arabia, Afghanistan, China, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece,Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus,Finland, Gabon, Iran, Canada, Argentina, Lebanon. other countries
