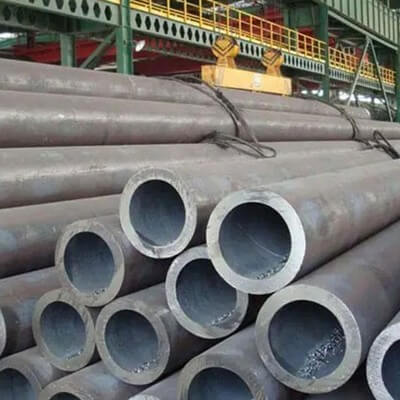

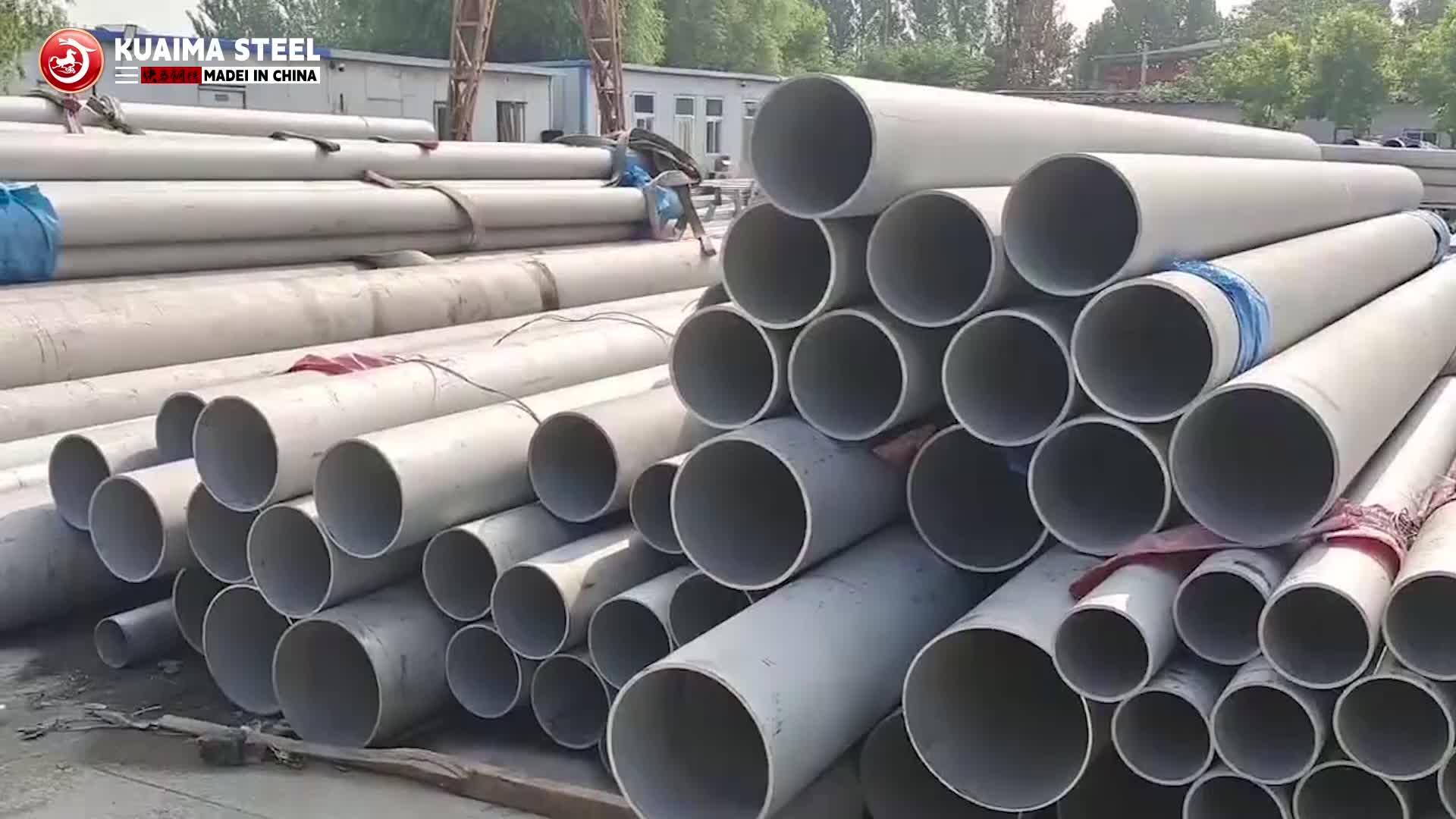

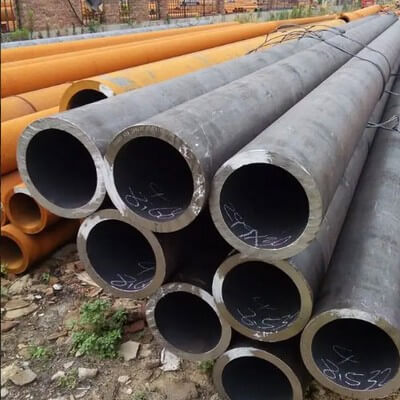

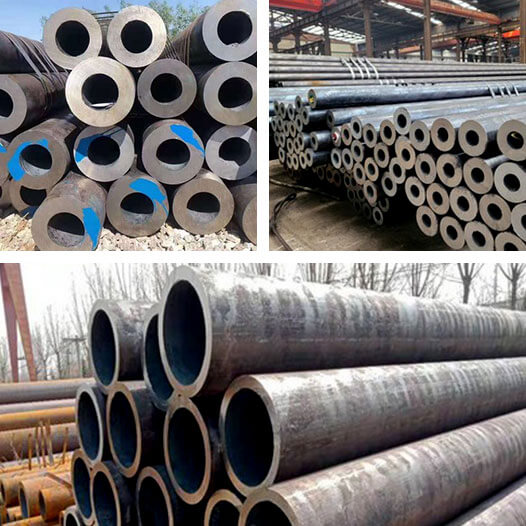

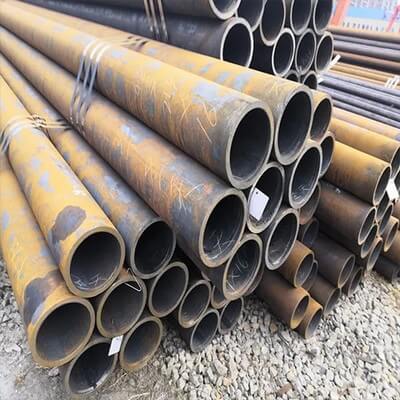

Product Description of boiler pressure pipe
High-pressure boiler tubes are often under high temperature and high pressure conditions when used, and the tubes will be oxidized and corroded under the action of high-temperature flue gas and water vapor. Steel pipes are required to have high durable strength, high resistance to oxidation and corrosion, and good structural stability.
①The operating temperature of general boiler tubes is below 450°C, and domestic tubes are mainly made of No. 10 and No. 20 carbon-structured steel hot-rolled or cold-drawn tubes.
②High-pressure boiler tubes are often exposed to high-temperature and high-pressure conditions during use, and the tubes will be oxidized and corroded under the action of high-temperature flue gas and water vapor. Steel pipes are required to have high durable strength, high resistance to oxidation and corrosion, and good structural stability.
①General boiler tubes are mainly used to manufacture water-cooled wall tubes, boiling water tubes, superheated steam tubes, superheated steam tubes for locomotive boilers, large and small smoke tubes, and arch brick tubes.
②High-pressure boiler tubes are mainly used to manufacture superheater tubes, reheater tubes, gas guide tubes, main steam tubes, etc. of high-pressure and ultra-high pressure boilers.
The production process of high-pressure boiler tubes varies with different steel types. Taking pearlitic chromium molybdenum vanadium steel as an example, the production process characteristics of boiler tubes are: (1) The tube blank should be peeled, and the peeling amount is usually 5mm; (2) Because the steel is hard, the tube blank is often cut or sawed with oxygen; (3) Since the thermal conductivity of chromium-molybdenum-vanadium steel is lower than that of carbon steel, the heating rate should be slightly slower, the heating temperature is 1120-1180°C, and the piercing temperature is 1100-1160°C; (4) This type of steel is in the range of 1000-1100°C It has good plasticity and low deformation resistance, so the perforation performance is better, and the deformation parameters can be selected according to medium carbon steel or alloy steel (such as 30CrMnSiA); (5) After rolling, the steel pipe should be normalized and tempered, and the normalizing temperature is 950 ~980°C, tempering temperature is 730~750°C, and holding time is 2~3h; (6) The dimensional tolerance of the steel pipe is strict to ensure butt welding; the length of the pipe should be as long as possible to reduce the number of welds.
Speci -cation | Grade | Chemical Composition [%] | Mechanical Properties | |||||||||||||||||||
C | Mn | P | S | Si | Cr | Mo | Cu | Ni | V | Yield Strength | Tensile Strength | % Elongation (G.L. 50 mm WT 8 mm) e (min.) | ||||||||||
Min. | Min. | |||||||||||||||||||||
Min | Max. | Min | Max. | Max. | Max. | Min. | Max | Min. | Max | Min. | Max | Max | Max | Max | PSI | MPa | PSI | MPa | ||||
SEAMLESS COLD DRAWN PRECISION STEEL TUBES FOR MECHANICAL APPLICATIONS/HYDRAULIC/PNEUMATIC POWER SYSTEMS | ||||||||||||||||||||||
EN 10305-1/ EN10305-4 | E 235 E 355 | 0.17 0.22 | 1.2 1.6 | 0.025 0.025 | 0.025 0.025 |
| 0.35 0.55 | 0.02 0.02 | 235 355 | 340 490 | 25 22 | |||||||||||
EN 10216-1 | P195 TR1 P235 TR1 | 0.13 0.16 | 0.7 1.2 | 0.025 0.025 | 0.02 0.02 | 0.35 0.35 | 0.3 0.3 | 0.08 0.08 | 0.3 0.3 | 0.3 0.3 | 195 235 | 320 360 | 27 25 | |||||||||
EN 10216-2 | P235 GH | 0.16 | 1.2 | 0.025 | 0.02 | 0.35 | 0.3 | 0.08 | 0.3 | 0.3 | 0.02 | |||||||||||
DIN 2391 | St - 45 St - 45 St - 52 | - - - | 0.17 0.21 0.22 | 0.40 0.40 - | - - 1.60 | 0.025 0.025 0.025 | 0.025 0.025 0.025 | - - - | 0.35 0.35 0.55 | - - - | - - - | - - - | - - - | - - - | - - - | - - - | NBK : 215 / GBK : - NBK : 255 / GBK : - NBK : 355 / GBK : - | NBK : 340 / GBK : 315 NBK : 440 / GBK : 390 NBK : 490 / GBK : 490 | NBK : 470 NBK : 570 NBK : 630 | |||
ASTM A-519 | SAE 1010 SAE 1018 SAE 1026 SAE 1035 SAE 1040 SAE 1518 SAE 1541 SAE 4130 | 0.08 0.15 0.22 0.32 0.37 0.15 0.36 0.28 | 0.13 0.20 0.28 0.38 0.44 0.21 0.44 0.33 | 0.30 0.60 0.60 0.60 0.60 1.10 1.35 0.40 | 0.60 0.90 0.90 0.90 0.90 1.40 1.65 0.60 | 0.040 0.040 0.040 0.040 0.040 0.040 0.040 0.040 | 0.050 0.050 0.050 0.050 0.050 0.050 0.050 0.040 | - - - - - - - 0.15 | - - - - - - - 0.35 | - - - - - - - 0.80 | - - - - - - - 1.10 | - - - - - - - 0.15 | - - - - - - - 0.25 | - - - - - - - - | - - - - - - - - | - - - - - - - - | As per Customer requirements | |||||
BOILER/HEAT EXCHANGER/SUPERHEATER & CONDENSER TUBES | ||||||||||||||||||||||
ASTM A179 | - | 0.06 | 0.18 | 0.27 | 0.63 | 0.035 | 0.035 | - | - | - | - | - | - | - | - | - | 26,000 | 180 | 47,000 | 325 | 35 | |
ASTM A192 | 0.06 | 0.18 | 0.27 | 0.63 | 0.035 | 0.035 | - | 0.25 | - | - | - | - | - | - | - | 26,000 | 180 | 47,000 | 325 | 35 | ||
ASTM A 210 | A-1 C | - - | 0.27 0.35 | - 0.29 | 0.93 1.06 | 0.035 0.035 | 0.035 0.035 | 0.10 0.10 | - - | - - | - - | - - | - - | - - | - - | - - | 37,000 40,000 | 255 275 | 60,000 70,000 | 415 485 | 30 30 | |
ASTM A 213 | T-11 T-12 T-22 | 0.05 0.05 0.05 | 0.15 0.15 0.15 | 0.30 0.30 0.30 | 0.60 0.61 0.60 | 0.025 0.025 0.025 | 0.025 0.025 0.025 | 0.50 - - | 1.00 0.50 0.50 | 1.00 0.80 1.90 | 1.50 1.25 2.60 | 0.44 0.44 0.87 | 0.65 0.65 1.13 | - - - | - - - | - - - | 30,000 32,000 30,000 | 205 220 205 | 60,000 60,000 60,000 | 415 415 415 | 30 30 30 | |
ASTM A335 | P-11 P-12 P-22 | 0.05 0.05 0.05 | 0.15 0.15 0.15 | 0.30 0.30 0.30 | 0.60 0.61 0.60 | 0.025 0.025 0.025 | 0.025 0.025 0.025 | 0.50 - - | 1.00 0.50 0.50 | 1.00 0.80 1.90 | 1.50 1.25 2.60 | 0.44 0.44 0.87 | 0.65 0.65 1.13 | - - - | - - - | - - - | 30,000 32,000 30,000 | 205 220 205 | 60,000 60,000 60,000 | 415 415 415 | 30 30 30 | |
BS 3059 Pt I | 320 | - | 0.16 | 0.30 | 0.70 | 0.040 | 0.040 | 0.10 | 0.35 | - | - | - | - | - | - | - | 28,000 | 195 | 46,000 | 320 | 69,500 | |
BS 3059 Pt II | 622-490 | 0.08 | 0.15 | 0.40 | 0.70 | 0.030 | 0.030 | - | 0.50 | 2.00 | 2.50 | 0.90 | 1.20 | - | - | - | 40,000 | 275 | 71,000 | 490 | 93,000 | |
DIN 1629 | St- 37.0 St - 52 | - - | 0.17 0.22 | - - | - - | 0.040 0.040 | 0.040 0.035 | - - | - - | - - | - - | - - | - - | - - | - - | - - | WT 16mm = 235 / WT>16mm = 225 WT 16mm = 355 / WT>16mm = 345 | 350 - | - Long 21 / Trans 19 | |||
DIN 17175 | St - 35.8 St - 45.8 | - - | 0.17 0.21 | 0.40 0.40 | 0.80 1.20 | 0.040 0.040 | 0.040 0.040 | 0.10 0.10 | 0.35 0.35 | - - | - - | - - | - - | - - | - - | - - | WT 16mm = 235 / WT>16mm = 225 WT 16mm = 255 / WT>16mm = 245 | 360 410 | 480 530 |
Product Name | High pressure boiler tube |
Material | GR.B,ST52, ST35, ST42, ST45,X42, X46, X52, X56, X60, X65, X70,SS304, SS316 etc. |
Size | Size 1/4" to 24" Outside Diameter 13.7 mm to 610 mm |
Standard | API5L , ASTM A106 Gr.B, ASTM A53 Gr.B, ANSI A210-1996, ANSI B36.10M-2004 , ASTM A1020-2002,ASTM A179-1990 ,BS 3059-2,DIN 17175 ,DIN 1630 ,DIN 2448
|
Certificates | API5L, ISO 9001:2008,SGS, BV,CCIC |
Wall thickness | SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS |
Surface Treatment | black paint, varnish, oil, galvanized, anti corrosion coatings |
Marking | Standard marking, or according to your request. Marking Method: Spray white paint |
Pipe Ends | Under 2 inch plain end. 2 inch and above Beveled. Plastic caps (small OD) ,Iron protector (large OD) |
Pipe Length | 1. Single Random Length and double Random Length. 2. SRL:3M-5.8M DRL:10-11.8M or As clients requested length 3. fixed length(5.8m, 6m, 12m) |
Packaging | Loose package; Packaged in bundles(2Ton Max); bundled pipes with two slings at the both end for easy loading and discharging; End with Plastic caps; wooden cases. |
Test | Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing , X-ray Test. |
Application | liquid delivery; Structure pipe; High and low pressure Boiler tube; Seamless steel tubes for petroleum cracking; oil pipe; gas pipe |
Advantages | 1.Reasonable price with excellent quality 2.Abundant stock and prompt delivery 3.Rich supply and export experience, sincere service 4.Reliable forwarder, 2-hour away from port. |
Shandong Kuaima Steel Co., Ltd. has advanced special smelting, investment casting, pipe making and other production equipment. The company has 15 advanced production lines, which can independently produce boiler pressure pipe,hot/cold rolled steel, galvanized steel, galvanized steel, prepainted steel and stainless steel coils, strips, plates, plates, pipes, bars and other products. The standing inventory is more than 450,000 tons to meet the customer's demand for delivery time.
china boiler seamless steel pipe | china seamless steel carbon boiler pipes |
china boiler stainless steel pipe | china stainless steel boiler pipe |
china boiler steel pipe | china steel pipe boiler tube |
china boiler steel pipe suppliers | high pressure boiler steel pipe |
china high pressure boiler steel pipe | high pressure boiler steel pipe manufacturer |
china pressure boiler steel pipe | high-pressure boiler steel pipe |
china sa106c boiler steel pipe mill | large steel boiler pipe |
china seamless alloy steel boiler pipe | p235gh boiler steel pipe |
We have professional testing equipment. We have our own testing center laboratory to guarantee the quality of our products.
thickness
width
coating quality
chromatic aberration
paint
thickness
hardness
luster
tensile strength
Yield Strength
We are a world-renowned boiler pressure pipe exporter, Qatar, Ireland, Portugal,Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Italy, Libya, Ro-Fanaticism, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Philippines, Ghana, Slovakia, Germany,Saudi Arabia, Afghanistan, China, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece,Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus,Finland, Gabon, Iran, Canada, Argentina, Lebanon. other countries
