Precision seamless steel pipe
Stainless steel precision tubes available as thin wall tubes in seamless or welded redrawn condition or as seamless thick wall tubes.A leading supplier of seamless square tubes and seamless round tubes. Free samples are provided. Suppliers provide free samples. ex works supplier.

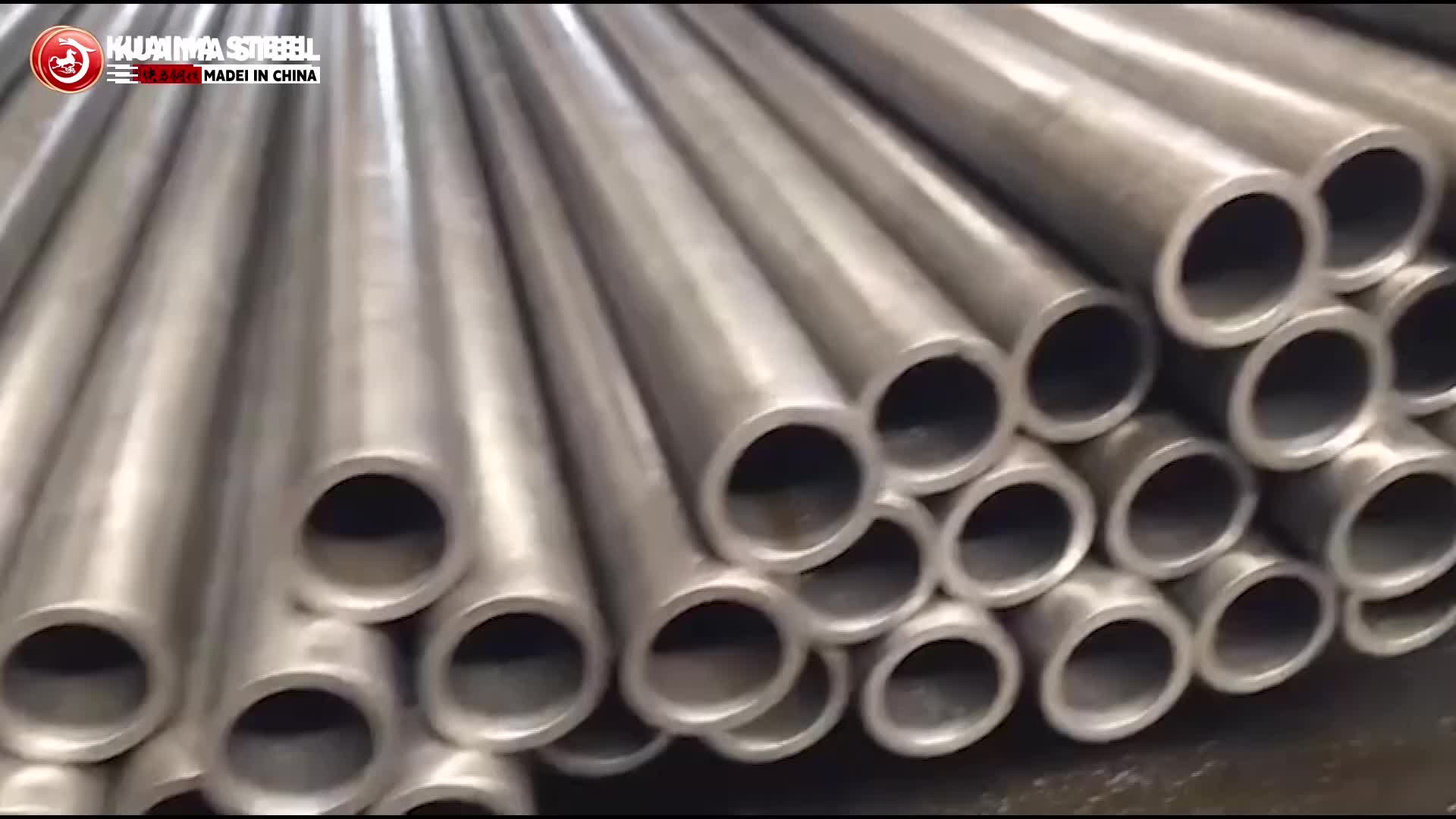

Precision seamless steel pipe is a cold drawn or hot-rolled after treatment of a high-precision steel pipe. As the precision seamless steel pipe inside and outside the wall of non-oxidized layer of precision seamless steel pipe, to withstand high pressure without leakage, high precision, high finish, cold bending deformation, flaring, flattening without cracks, etc., is mainly used to produce pneumatic or hydraulic components Of products, such as cylinders or cylinders, are made of seamless tubes. Precision seamless steel pipe chemical composition of carbon C, silicon Si, manganese Mn, sulfur S, phosphorus P, chromium Cr.
Precision seamless steel pipe is a cold drawn or hot-rolled after treatment of a high-precision steel pipe. As the precision seamless steel pipe inside and outside the wall of non-oxidized layer of precision seamless steel pipe, to withstand high pressure without leakage, high precision, high finish, cold bending deformation, flaring, flattening without cracks, etc., is mainly used to produce pneumatic or hydraulic components Of products, such as cylinders or cylinders, are made of seamless tubes. Precision seamless steel pipe chemical composition of carbon C, silicon Si, manganese Mn, sulfur S, phosphorus P, chromium Cr.
Standard | Grade | Chemical Components (%) | |||||||
C | Si | Mn | P | S | Mo | Cr | V | ||
ASTM A519 | MT1010 | 0.05-0.15 | / | 0.30-0.60 | ≤0.040 | ≤0.050 | / | / | / |
MT1015 | 0.10-0.20 | / | 0.30-0.60 | ≤0.040 | ≤0.050 | / | / | / | |
MT1020 | 0.15-0.25 | / | 0.30-0.60 | ≤0.040 | ≤0.050 | / | / | / | |
1010 | ≤0.10 | / | 0.30-0.50 | ≤0.040 | ≤0.050 | / | / | / | |
1020 | 0.18-0.23 | / | 0.30-0.60 | ≤0.040 | ≤0.050 | / | / | / | |
1035 | 0.32-0.38 | / | 0.60-0.90 | ≤0.040 | ≤0.050 | / | / | / | |
1045 | 0.43-0.50 | / | 0.60-0.90 | ≤0.040 | ≤0.050 | / | / | / | |
4130 | 0.28-0.33 | 0.15-0.35 | 0.40-0.60 | ≤0.040 | ≤0.040 | 0.15-0.25 | 0.8-1.10 | / |
Grade | Delivery Condition | Tensile Strength (Mpa) Min. | Yield Strength (Mpa) Min. | Elongation (%) Min. | Hardness (HB) Min. |
1020 | HR | 345 | 221 | 25 | 55 |
CW | 483 | 414 | 5 | 75 | |
SR | 448 | 345 | 10 | 72 | |
A | 331 | 193 | 30 | 50 | |
N | 379 | 234 | 22 | 60 | |
1035 | HR | 448 | 276 | 20 | 72 |
CW | 586 | 517 | 5 | 88 | |
SR | 517 | 448 | 8 | 80 | |
A | 414 | 228 | 25 | 67 | |
N | 448 | 276 | 20 | 72 | |
1045 | HR | 517 | 310 | 15 | 80 |
CW | 621 | 552 | 5 | 90 | |
SR | 552 | 483 | 8 | 85 | |
A | 448 | 241 | 20 | 72 | |
N | 517 | 331 | 15 | 80 | |
4130 | HR | 621 | 483 | 20 | 89 |
SR | 724 | 586 | 10 | 95 | |
A | 517 | 379 | 30 | 81 | |
N | 621 | 414 | 20 | 89 |
Product Name | Standard | Grade | O.D. Size Range mm | Usage |
Seamless Cold Drawn Precision Tubes | JIS G3445 | STKM 11A, STKM 12A, STKM 12B, STKM 12C, STKM 13A, STKM 13B, STKM 13C, STKM 15A, STKM 15C, STKM 17A, STKM 17C, STKM 18A | 6.00 to 88.90 | Mechanical and Automobile Precision Tubes |
DIN2391 | ST35, ST45, ST52 | 6.00 to 76.00 | Seamless Precision Tubes | |
ASME/ ASTM SA/A519 | SAE1010, SAE1020, SAE1025, SAE1026, SAE1035, SAE1045, SAE4130 | 6.00 to 340.00 | Mechanical Precision Tubes | |
EN10305-1 | E215, E235, E335 | 6.00 to 340.00 | Hydraulic Pressure Equipment | |
ISO8535-1 | ST35, ST37, ST52 | 6.00 to 16.00 | High Precision High Pressure Fuel Pipes | |
Cold Drawn Welded Precision Tubes | ASTM A513 | MT1010, 1015, 1020 | 21.70 to 90.00 | Automobile Shock Absorber Cylinder, Front and Rear Axle Structural Purpose, Director Tubes, Engine Hydraulic Tubes |
EN10305-2 | E215, E235, E335 | 10.00 to 90.00 | ||
DIN2393 | S215, S235, S355 | 10.00 to 90.00 | ||
DIN2394 | S215, S235, S355 | 10.00 to 90.00 |
Designation | Symbol | Description | |||||||
Cold drawn/hard | +C | No heat treatment after the final cold drawing process | |||||||
Cold drawn/soft | +LC | After the final heat treatment there is a suitable drawing pass | |||||||
Cold drawn and stress relieved | +SR | After the final cold drawing process there is a stress relief heat treatment in a controlled atmosphere | |||||||
Annealed | +A | After the final cold drawing process the tubes are annealed in a controlled atmosphere | |||||||
Normalized | +N | After the final cold drawing operation the tubes are normalized in a controlled atmosphere |
Shandong Kuaima Steel Co., Ltd. has advanced special smelting, investment casting, pipe making and other production equipment. The company has 15 advanced production lines, which can independently produce hot/cold rolled steel, galvanized steel, galvalume steel, prepainted steel and Precision seamless steel pipe,strips, plates, plates, pipes, bars and other products. The standing inventory is more than 450,000 tons to meet the customer's demand for delivery time.
fabricated stainless steel pipe | large stainless steel pipe |
ferritic stainless steel pipe | lowes stainless steel pipe |
galvanized stainless steel pipe | marine stainless steel pipe |
flexible stainless steel pipe | metric stainless steel pipe |
gold stainless steel pipe | model 419 stainless steel pipe |
heat resistant stainless steel pipe | round stainless steel pipe |
heavy wall stainless steel pipe | sch 160 stainless steel pipe |
high pressure stainless steel pipe | sch 20 stainless steel pipe |
We have professional testing equipment. We have our own testing center laboratory to guarantee the quality of our products.
thickness
width
coating quality
chromatic aberration
paint
thickness
hardness
luster
tensile strength
Yield Strength
We are a world-renowned Precision seamless steel pipe exporter, Qatar, Ireland, Portugal,Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Italy, Libya, Ro-Fanaticism, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Philippines, Ghana, Slovakia, Germany,Saudi Arabia, Afghanistan, China, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece,Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus,Finland, Gabon, Iran, Canada, Argentina, Lebanon. other countries
