best in china PPGL Corrugated Sheet supplier

Color Coated Corrugated Sheet
Corrugated Sheet For Building Material
Corrugated Sheet
Color Coated Corrugated Sheet For Building Material dealer
Color Coated Corrugated Sheet
Corrugated Sheet For Building Material
Corrugated Sheet

Color Coated Corrugated Sheet For Building Material dealer

Get Latest Price >Reference FOB Price

US $600.00 - $680.00 / Ton | 1 Ton (Min. Order)

Payment Type: L/C, T/T, D/P, D/A, Paypal, Money Gram, Western Union

Incoterm: FOB, CFR, CIF, EXW, FAS, FCA, CPT, CIP, DEQ, DDP, DDU, Express Delivery, DAF, DES

Transportation: Ocean, Land, Air, Express

Port: Ningbo Port,Tianjin Port,Shanghai Port

Supply Ability: 50000Ton/year

Package: In accordance with customer requirements

Product Detail

Product Attributes

  • Surface Treatment Color Coated
    Length according to requirement
    Standard AiSi, ASTM, bs, DIN, GB, JIS, EN, AS etc
  • Color RAL Colors
    Hardness Soft,Half Hard,Full Hard
    Tolerance ±1%

Product Description



Product Description


Main uses of corrugated board:

1. Various roof and wall decorations

2. Interior and exterior decoration materials

3. Floor structure of civil residential buildings

4. Workshop

5. Public buildings such as exhibition halls, sports centers, power plants, railway stations, etc.

Quality characteristics:

1. Beautiful appearance, reasonable design, reliable quality, easy installation and operation, high practicability, economy and market share.

2. Good waterproof effect

3. Widely used

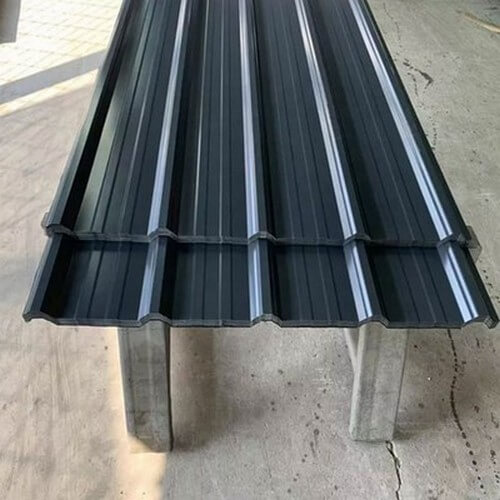

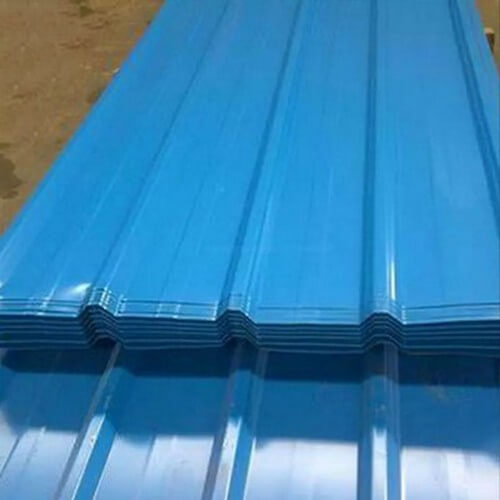

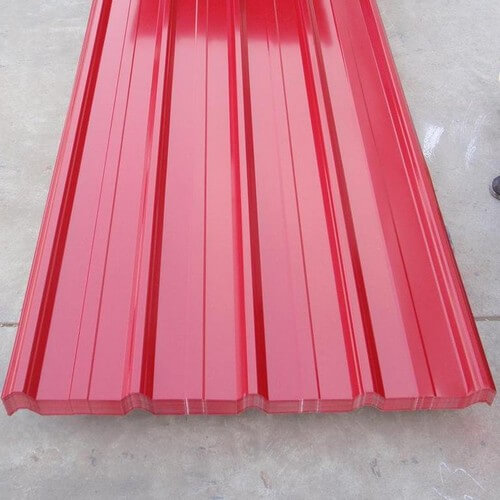

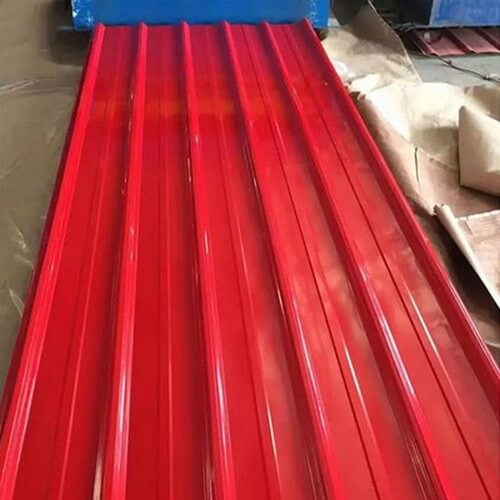

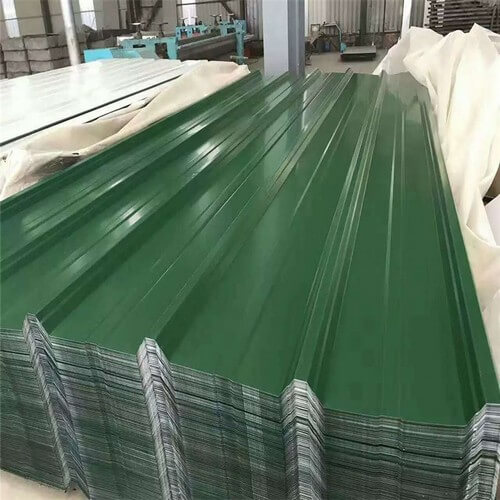

Product Display


Length

1-12m or as required

Width

0.6m-3m or as required

Thickness

0.1mm-300mm or as required

Standard

AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc.

Surface Treatment

Clean, blasting and painting according to customer requirement

Thickness tolerance

±0.15mm



What are the roof pressing steel plate structures?


The selection of the profiled steel plate should take into account the roof slope. When the slope is small, because the roof drainage is not smooth, the high corrugated roof plate should be used as far as possible. The included Angle between the web of the profiled steel plate and the horizontal plane of the flange should not be less than. ⒊ Shaped steel plate should be used long foot plate, in order to reduce the number of plate transverse lap, is conducive to roof waterproof. The transverse lap of the profilled steel plate should be reliably connected with purlin. The lap length should meet the specification requirements. The lap length should not be less than 350mm for high corrugated profilled steel plate with wave height greater than 70mm, and the lap length should not be less than 250mm for low corrugated profilled steel plate with wave height less than 70mm. 5. There are different ways of side connection of profiled steel plates, refer to Section 4 of this chapter for details. In order to prevent roof leakage, if possible, the use of hidden button connection. When the roof panel side lap, the lap width should depend on the shape and specification of the profile steel plate, generally not less than half wave, the lap direction should be consistent with the dominant wind direction. For low corrugated profile-shaped steel plates with wave height less than 70mm, no fixing bracket is required, while for high corrugated profile-shaped steel plates with wave height greater than 70mm, a fixing bracket is required. 6. When transverse and lateral connection of pressing steel plate, there must be reliable connection to prevent dislocation and sliding of roof plate. 7. Considering the poor performance of domestic sealing material and easy to aging and cracking, the connecting piece is set in the crest of the wave as far as possible in order to waterproof.


Is it possible to install water stop steel plate (soil roof) for the roof after pouring?


The roof after pouring belt, before pouring can be set water stop steel plate, in the case of construction conditions allow can also set flexible water stop belt. Because the post-pouring belt is a construction node that is used for pouring after a specified time, waterproof measures must be taken before pouring in the parts with waterproof requirements, such as the roof, so as to avoid roof leakage affecting the construction quality. The installation of water stop steel plate or water stop belt must be installed according to the specification, and both sides are fixed. Concrete can be poured after the inspection process is qualified.


Galvanized corrugated steel plate compression strength is how much?


SPHC Tempering chemical Composition (mass fraction) (%)

C: 0.12 or less

Mn: 0.50 or less

Si: 0.30 or less

S: 0.040 or less

P: 0.035 or less

Mechanical properties of SPHC steel

Tensile strength (σ B /MPa) : ≥270

Elongation (δ5/%) : ≥33 (steel thickness or diameter ≤16mm), ≥32 (steel thickness or diameter > 16-40 mm)

Main characteristics of SPHC steel

It has high plasticity, toughness and welding performance, good pressure machining performance, but low strength.

SPHC steel application examples

Used for manufacturing anchor bolt, ploughshare, chimney, roof board, rivet, low carbon steel wire, thin plate, welding pipe, pull rod, hook, bracket, welding structure, etc. Roll sheet and wire rod. Cold and hot rolled thin steel plates and galvanized, tinned and plastic composite thin steel plates made from them are widely used in roofing plates, decorative plates, general dust removal pipes, packaging containers, iron barrels, instrument cases, switch boxes, protective covers, train carriages and so on. Wire rod is more cold drawn into low carbon steel wire or galvanized into galvanized low carbon steel wire, used for binding, tension fixed or used as wire mesh, rivets and so on.


Who can introduce the advantages of double arch corrugated steel roof?


1. No beam and no purlin, wide space, large span capacity, span 6-32 meters optional.

2. Low cost, less investment, economic benefits.

3. Short design and construction period, 10000m2 roof building can be completed in 20 days.

4. Color galvanized steel plate, mechanical lock connection, natural waterproof, no leakage.

5. Beautiful appearance, durable, no maintenance.

6. Light weight, scientific and reasonable overall structure, excellent wind resistance and seismic performance.

7. Wind and snow resistance, can resist 160km/n wind speed, can withstand 148kg/2; The snow load.

8. Beautiful shape, bright color, novel and full of rhythm. Rich and varied roof forms give the building a new appearance.

9. Functional, roof board and beam unity, set thermal insulation, heat insulation, ventilation, lighting and other functions.

10. No steel beams, metal corrugated space structure, amazing shape, arch height can vary from one fifth to one half of the span,

Architectural modeling from arc to semicircle, rich architectural modeling.



FAQ


Q:What is your terms of payment?
A:We usually accept T/T in advance, L/C for large sum.If you prefer other payments terms, please discuss.

Q:What is the terms of delivery?
A:EXW, FOB, CIF

Q:What is the terms of packing?
A:Generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirements.

Q:What is your delivery time?
A:For products in stock, we can ship it within 7 days after receiving the deposit.For custom order, production time is 15-30
workdays after received the deposit.

Q:Could you produce according to the samples?
A:Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.

Q:Can I place an sample order and what is your MOQ if I accept your quality?
A:Yes, we can send you samples but you may pay the express fees, our MOQ is 1 ton.

Q:How could you guarantee your products?
A:We accept and support the third-party inspection.We also could issue the warranty to customer to guarantee the quality.

Q:Where is the port of shipment?
A:Ningbo or Shanghai sea port.

Q:How can I get the price of needed product?
A:It's the best way if you can send us the material, size and surface, so we can produce for u to check the quality.If you
still have any confusion, just contact us, we would like to be helpful.
