PPAL/Color Coated Aluminum Sheet Manufacturer/Supplier

Color-coated aluminum plate Advantages

1、Color-coated aluminum plate come in a variety of colors. After the aluminum plate is washed, chrome-plated, rolled, baked, etc., the surface of the aluminum plate is coated with paint coatings of various colors.Colored aluminum has the advantages of light weight, bright color, easy processing, and rust resistance.

2. Color-coated aluminum will become a popular trend because of its high cost performance.
3. The color-coated aluminum material is strong, the surface is not easy to rust, and can withstand greater pressure.
4. The production and installation of color-coated aluminum is convenient and quick, saving 80% of the installation time compared with color steel plate and square tube.

Chemical Composition of Color-coated aluminum plate

Alloy	%Si	%Mg	%Mn	%Cu	%Fe	%Cr	%Zn	%Ti	%Others	%Al
EN AW-1050 A	0.25Max	0.05Max	0.05Max	0.05Max	0.40Max	–	0.07Max	0.05Max	–	99.5 Min
EN AW-1070 A	0.20Max	0.03Max	0.03Max	0.03Max	0.25Max	–	0.07Max	0.03Max	–	99.7 Min
EN AW-1100	Si+Fe 0.95 Max	–	0.05 Max	0.05 – 0.20	–	–	0.10 Max	0.05 Max	–	99.0 Min
EN AW-2011	0.40 Max	–	–	5.00 – 6.00	0.70 Max	–	0.30 Max	–	Bi : 0.20 – 0.60Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	0.20 – 0.80	0.40 – 1.20	3.90 – 5.00	0.70 Max	0.10 Max	0.25 Max	0.15 Max	–	Remainder
EN AW-2024	0.50 Max	1.20 -1.80	0.30 – 0.90	3.80 – 4.90	0.50 Max	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	–	1.00 – 1.50	0.05 – 0.20	0.70 Max	–	0.10 Max	–	0.15 Max	Remainder
EN AW-3103	0.50 Max	0.30 Max	0.90 – 1.50	0.10 Max	0.70 Max	0.10 Max	0.20 Max	0.10 Max	–	Remainder
EN AW-6101A	0.30 – 0.7	0.40 – 0.90	0.03 Max	0.05 Max	0.40 Max	–	–	–	0.10 Max	Remainder
EN AW-6005	0.60 – 0.90	0.40 – 0.60	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6351	0.70 – 1.30	0.40 – 0.80	0.40 – 0.80	0.10 Max	0.50 Max	–	0.20 Max	0.20 Max	0.15 Max	Remainder
EN AW-6060	0.30 – 0.60	0.35 – 0.60	0.10 Max	0.10 Max	0.10 – 0.30	0.05 Max	0.15 Max	0.10 Max	–	Remainder
EN AW-6061	0.40 – 0.80	0.80 – 1.20	0.15 Max	0.15 – 0.40	0.70 Max	0.04 – 0.35	0.25 Max	0.15 Max	–	Remainder
EN AW-6063	0.20 – 0.60	0.45 – 0.90	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6082	0.70 – 1.30	0.60 -1.20	0.40 – 1.00	0.10 Max	0.50 Max	0.25 Max	0.20 Max	0.10 Max	–

Mechanical properties of Color-coated aluminum plate

ALUMINUMALLOY	Grade	NormalTemper	Temper	Tensile StrengthN/mm²	Yield StrengthN/mm²	Elongation%		Brinell HardnessHB
ALUMINUMALLOY	Grade	NormalTemper	Temper	Tensile StrengthN/mm²	Yield StrengthN/mm²	Plate	Bar	Brinell HardnessHB
1XXX	1050	O,H112,H	O	78	34	40	-	20
1XXX	1060	O,H112,H	O	70	30	43	-	19
Al-Cu(2XXX)	2019	O,T3,T4,T6,T8	T851	450	350	10	-	-
Al-Cu(2XXX)	2024	O,T4	T4	470	325	20	17	120
Al-Mn(3XXX)	3003	O,H112,H	O	110	40	30	37	28
Al-Mn(3XXX)	3004	O,H112,H	O	180	70	20	22	45
Al-Si (4XXX)	4032	O,T6,T62	T6	380	315	-	9	120
Al-Mg(5XXX)	5052	O,H112,H	H34	260	215	10	12	68
Al-Mg(5XXX)	5083	O,H112,H	O	290	145	-	20	-
Al-Mg-Si(6XXX)	6061	O,T4,T6,T8	T6	310	275	12	15	95
Al-Mg-Si(6XXX)	6063	O,T1,T5,T6,T8	T5	185	145	12	-	60
Al-Zn-Mg(7XXX)	7003	T5	T5	315	255	15	-	85
Al-Zn-Mg(7XXX)	7075	O,T6	T6	570	505	11	9

Product Specification of Color-coated aluminum plate

name	Aluminum Manufacturer Painted Color Aluminum Sheet/plate For Construction Materials
Standard	JIS G3141,DIN1623,EN10130
Temper	O, H12, H22, H32, H14, H24, H34, H16, H26, H36, H18, H28, H38, H19, H25, H27,H111, H112,H241, H332, etc.
Surface Treatment	Mill Finished, Anodized, Embossed, PVC Coated etc
Alloy	Application field
1xxx	1050	Insulation, food industry, decoration, lamp, traffic signs etc.
	1060	Fan blade, Lamps and lanterns, Capacitor shell, Auto parts, Welding parts.
	1070	Capacitor, Rear panel of vehicle refrigerator, charging point, heat sink etc
	1100	Cooker, building material, printing, heat exchanger, bottle cap etc
2xxx	2A12 2024	Aircraft structures, rivets, aviation, machinery, missile components, the card wheel hub, propeller components, aerospace parts,car parts and various other structural parts.

3xxx	3003 3004 3005 3105	Aluminum curtain wall panel, aluminum Ceiling, Electric cooker bottom, TV LCD backboard, storage tank, curtain wall, building construction panel heat sink, billboard. Industrial floor, air conditioning, refrigerators radiators, Make-up board, Prefabricated house etc.


5xxx	5052	Marine and transportation material, railway carriage's inner and outer cabinet, oil and chemical industry storage device,equipment and medical device panel etc.
	5005	Marine applications, bodies of boats, buses, trucks and trailer. Curtain wall panel.
	5086	Ship board, deck, bottom and edge panel etc.
	5083	Tanker, oil storage tank, drilling platform, ship board, deck, bottom, welded parts and edge panel, railway carriage 's board,automotive and aircraft panel, cooling device and automotive molding etc.
	5182
	5454
	5754	Tanker body, marine facilities, pressure container, transportation etc.
6xxx	6061 6083 6082	Railway inside and outside parts, board and bed plate. Industry molding Highly stressed applications includes Roofing construction,transportation, and marine as well as mould.
	6063	Auto parts, architectural fabrication, window and door frames, aluminum furniture, electronic components as well as various consumer durable products.
7xxx	7005	Truss, rod/bar and the container in transportation vehicles; Large-sized heat ex changers.
	7050	Molding (bottles) mode, ultrasonic plastic welding mold, golf head, shoe mold, paper and plastic molding, foam molding, lost wax mold, templates, fixtures, machinery and equipment.
	7075	Aerospace industry, military industry, electronic etc.

call us now！ +86-18365977887 Or write to us at Echo@kuaimasteel.com

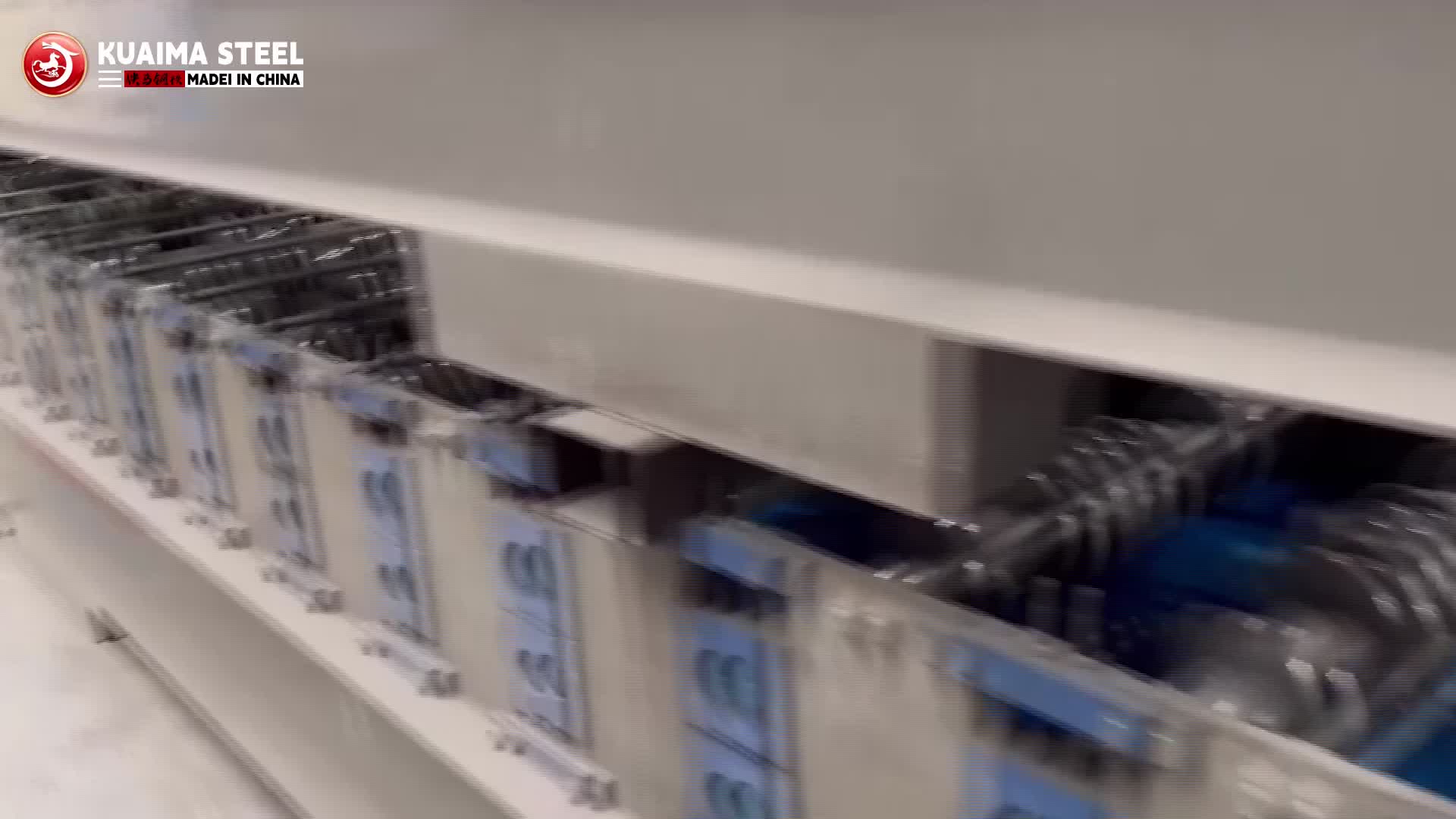

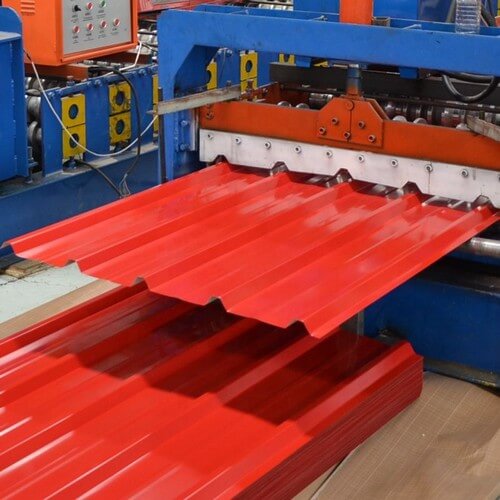

Color-coated aluminum plate Production line

Shandong Kuaima Steel Co., Ltd. has advanced special smelting, investment casting, pipe making and other production equipment. The company has 15 advanced production lines, which can independently produce hot/cold rolled steel, galvalume steel, color-coated aluminum plat，galvanized steel, prepainted steel and stainless steel coils, strips, plates, plates, pipes, bars and other products. The standing inventory is more than 450,000 tons to meet the customer's demand for delivery time.

Hot products

Color-coated aluminum plate prices	Color-coated aluminum plate steel
Color-coated aluminum plate production line	prepainted cold rolled Color-coated aluminum plate
Color-coated aluminum plate sale	prepainted Color-coated aluminum plate
Color-coated aluminum plate taiwan	prepainted Color-coated aluminum plate factory
Color-coated aluminum plate zauba.com	prepainted Color-coated aluminum plate manufacturers
Color-coated aluminum plate india	prepainted Color-coated aluminum plate importers
cold Color-coated aluminum plate	prepainted Color-coated aluminum plate supplier
Color-coated aluminum plate turkey	Color-coated aluminum plate steel

Color-coated aluminum plate quality inspection

We have professional testing equipment. We have our own testing center laboratory to guarantee the quality of our products.

thickness

width

coating quality

chromatic aberration

paint

thickness

hardness

luster

tensile strength

Yield Strength

Color-coated aluminum plate application industry

Machinery manufacturing industry
Oil & Gas Industries
Construction industry
Shipbuilding industry
Chemical industry
Power Generation

Color-coated aluminum plate outlet

We are a world-renowned color-coated aluminum plate exporter, Qatar, Ireland, Portugal,Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Italy, Libya, Ro-Fanaticism, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Philippines, Ghana, Slovakia, Germany,Saudi Arabia, Afghanistan, China, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece,Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus,Finland, Gabon, Iran, Canada, Argentina, Lebanon. other countries
