Product Description

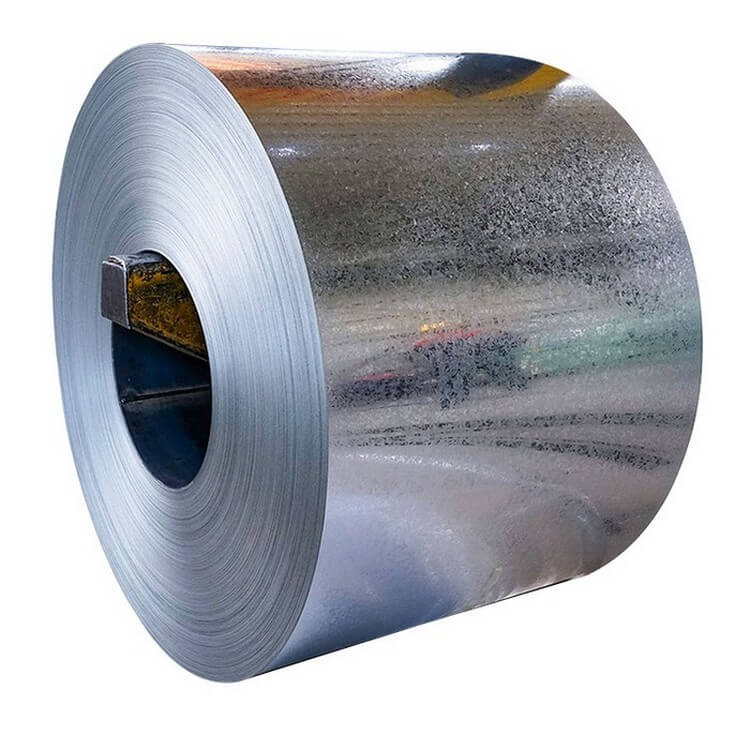

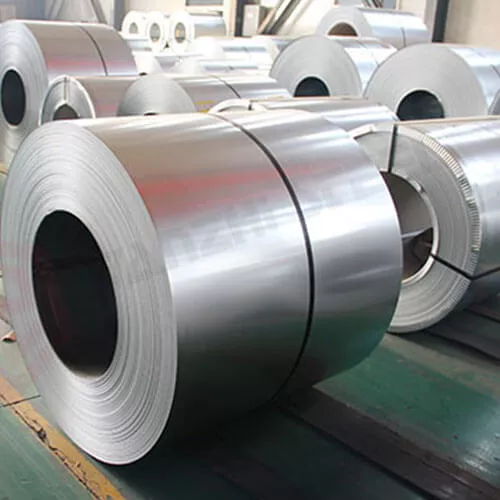

GI Coil The zinc coating is thick, with fine crystals, uniformity and no porosity, and good corrosion resistance.
The zinc coating is passivated by chromic acid to form white, colorful, military green, etc., which is beautiful and decorative.
Because the zinc coating has good ductility, it can be cold punched, rolled, bent and other forming without damaging the coating.
Product Display
Place of Origin | China |
Application | Decoration, Roofing, Industry, Building etc. |
Grade | 1000 Series - 8000 Series |
Surface Treatment | Coated |
Tolerance | ±1%, Thickness+/-0.01mm |
Coil weight | 3-5 Tons |
Surface | Galvanized Coated |
Length | As per requirement |
Aluminum zinc plating: 55% aluminum and 43.4% zinc and 1.6% silicon are coated on the surface of the steel plate by continuous melt plating process.
Has good durability, with galvanized steel & GT; Compared to live longer;
Has good heat resistance, compared with galvanized steel plate in high temperature is not easy to change color;
Good thermal reflectivity;
Having an ornate silvery surface;
It has similar processing and spraying properties to galvanized steel plate.
It has good welding performance.
High requirements in the use of galvanized sheet & GT; In the industry.
Electroplated tin (tinplate & GT) : Using Flostan type insoluble anodized tin process.
Caitu;
Electrical steel (silicon steel sheet).
1. General pure zinc coating products (GI)
ordinary hot dip galvanized products according to the surface state and can be divided into ordinary zinc flowers, no zinc, zinc and surface finishing products. Because of its good corrosion resistance and good performance, production processing and molding the advantages of low cost, beautiful appearance, and is widely used in building, automobile, household appliances and other industries. Especially small flowers, no zinc plating zinc products, the grain of small density and smooth surface has better coating and corrosion resistance, especially suitable for home appliances, light industry, etc.
2. Zinc alloy plating board (GF)
zinc alloy plating board is also called low galvanized steel plate, aluminum coating containing 5% 95% A1, zinc, and trace amounts of rare earth elements. The main advantage is plastic and coating adhesion is very good, and the corrosion resistance of the same before and after deformation;And atmospheric corrosion resistance is hot galvanized steel sheet 2 ~ 3 times of the normal and good coating, weldability, in all galvanized sheet, its toughness is best, corrosion resistance and with electric galvanized sheet formability niang beauty. This product is mainly used for the corrosion resistance of the weathering environment substrate and coating materials.
3. The galvalume plate (GL)
galvalume plate coating for A1 - zinc alloy, coating composition of 55% A1,43. 3% zinc, 1. 6% Si.. Its surface is smooth, has excellent resistance to atmospheric corrosion ability, hot galvanized steel sheet 2 ~ 6 times higher than the same. Is similar to hot dip aluminum corrosion resistance to high temperature, the high temperature of 315 degrees without any discoloration or deformation can be use for a long time. Hot galvanized steel sheet and water corrosion resistance is superior to hot dip aluminum plate, soil corrosion resistance is superior to hot galvanized sheet. Its thermal reflectivity is higher than 75%, was more than twice the normal galvanized sheet. Good painting and workability, is gradually replaced by galvanized sheet and widely used in the world.
4. Hot rolled
galvanized sheet hot rolled galvanized sheet are hot rolled plate for the base board, directly by pickling galvanization production of galvanized sheet. The board can be widely used in building, automobile, steel silo, railway, highway guardrail plate, etc. At present, the hot rolled steel sheet at home in the domestic production is less, most are manufacture has been completed and put into operation in the galvanizing production line for substrate of galvanized sheet. Compared with the cold rolled steel sheet, hot rolled galvanized sheet on the use of performance difference is not big, because of hot rolled galvanized sheet to eliminate the cold rolling process, low production cost, has obvious price advantage,
FAQ
Q:What is your terms of payment?
A:We usually accept T/T in advance, L/C for large sum.If you prefer other payments terms, please discuss.
Q:What is the terms of delivery?
A:EXW, FOB, CIF
Q:What is the terms of packing?

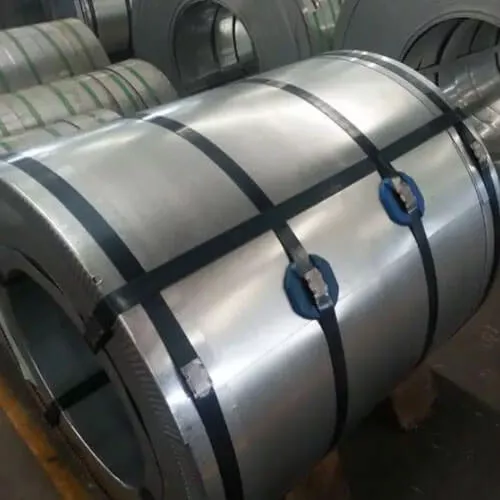

A:Generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirements.
Q:What is your delivery time?
A:For products in stock, we can ship it within 7 days after receiving the deposit.For custom order, production time is 15-30
workdays after received the deposit.
Q:Could you produce according to the samples?
A:Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q:Can I place an sample order and what is your MOQ if I accept your quality?
A:Yes, we can send you samples but you may pay the express fees, our MOQ is 1 ton.
Q:How could you guarantee your products?
A:We accept and support the third-party inspection.We also could issue the warranty to customer to guarantee the quality.
Q:Where is the port of shipment?
A:Ningbo or Shanghai sea port.
Q:How can I get the price of needed product?
A:It's the best way if you can send us the material, size and surface, so we can produce for u to check the quality.If you
still have any confusion, just contact us, we would like to be helpful.
Technical Standard | EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 | |||
Steel Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, | |||
Type | Galvanized Coil | |||
Thickness | 0.12-6.00mm, or customer's requirement | |||
Width | 600mm-1500mm, according to customer's requirement | |||
Type of Coating | Zinc | |||
Zinc Coating | 30-275g/m2 | |||
Surface Treatment | Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) | |||
Surface Structure | Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) | |||
Quality | Approved by SGS, ISO | |||
Package | Export standard package,bundled or be required. | |||
Export market | Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc |

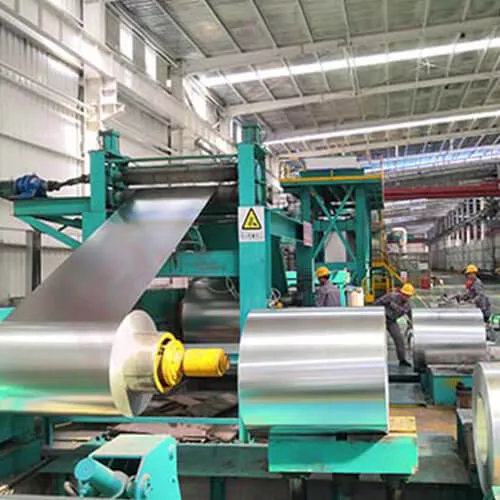

Shandong Kuaima Steel Co., Ltd. has advanced special smelting, investment casting, pipe making and other production equipment. The company has 15 advanced production lines, which can independently produce hot/cold rolled steel, galvanized steel coil, galvalume steel, prepainted steel and stainless steel coils,,strips, plates, plates, pipes, bars and other products. The standing inventory is more than 450,000 tons to meet the customer's demand for delivery time.
We have professional testing equipment. We have our own testing center laboratory to guarantee the quality of our products.
thickness
width
coating quality
chromatic aberration
paint
thickness
hardness
luster
tensile strength
Yield Strength
We are a world-renowned PPGI/prepainted galvanized steel coil exporter, Qatar, Ireland, Portugal,Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Italy, Libya, Ro-Fanaticism, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Philippines, Ghana, Slovakia, Germany,Saudi Arabia, Afghanistan, China, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece,Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus,Finland, Gabon, Iran, Canada, Argentina, Lebanon. other countries
