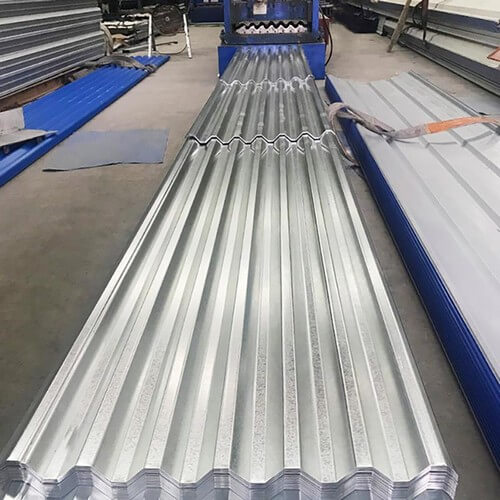

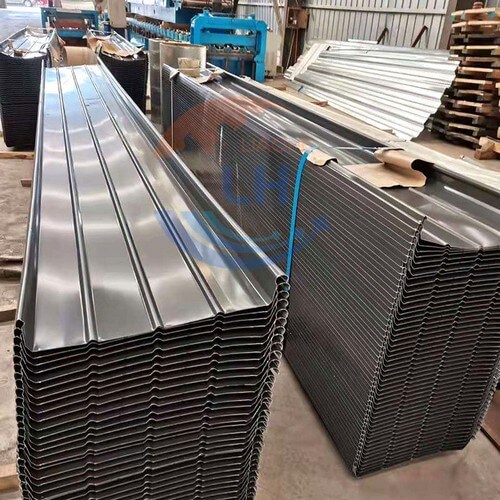

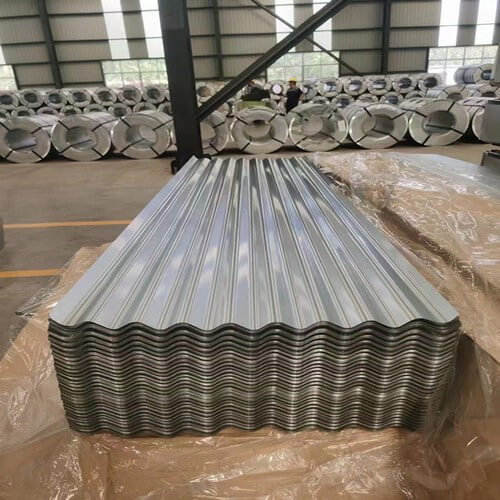

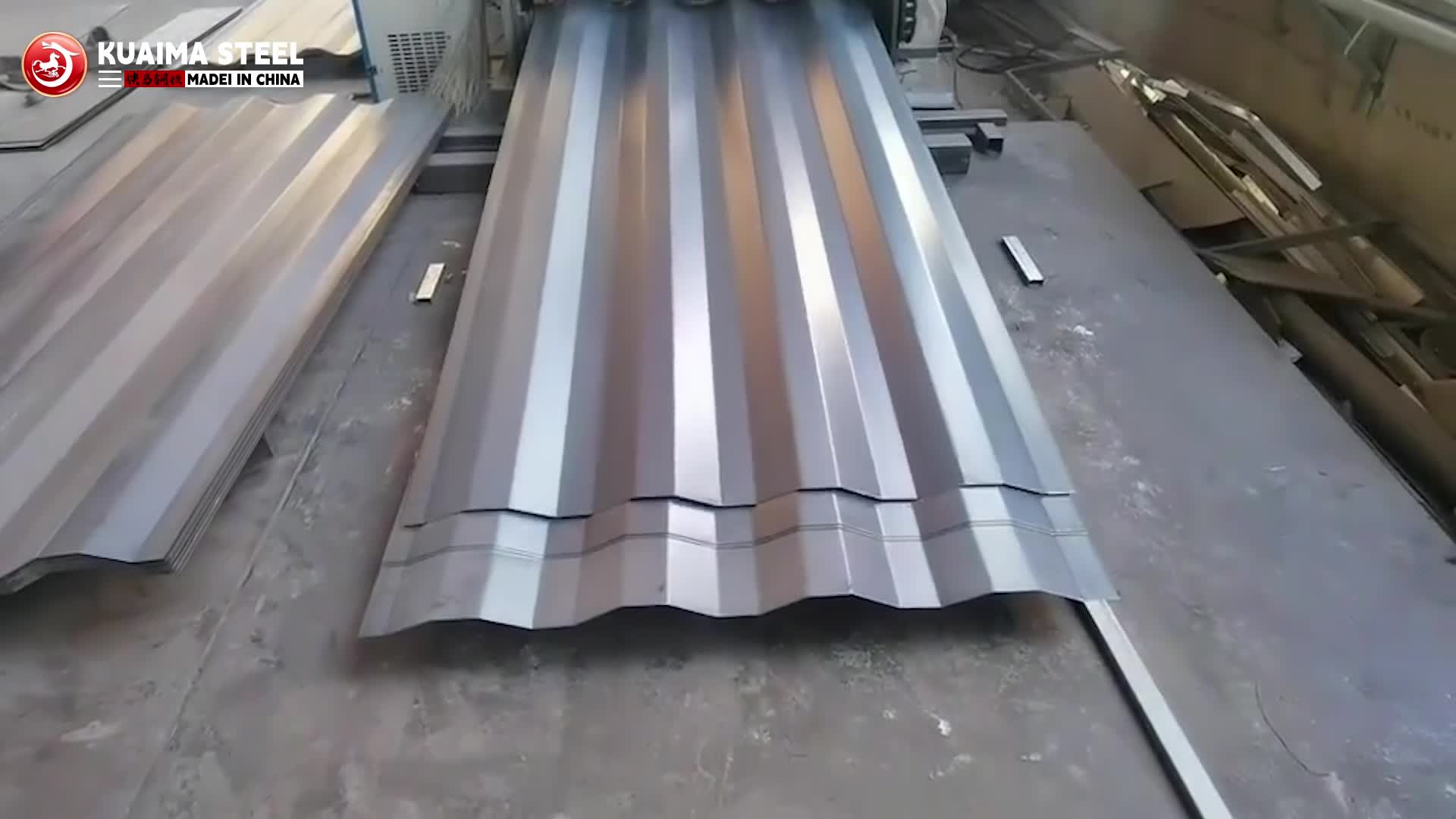

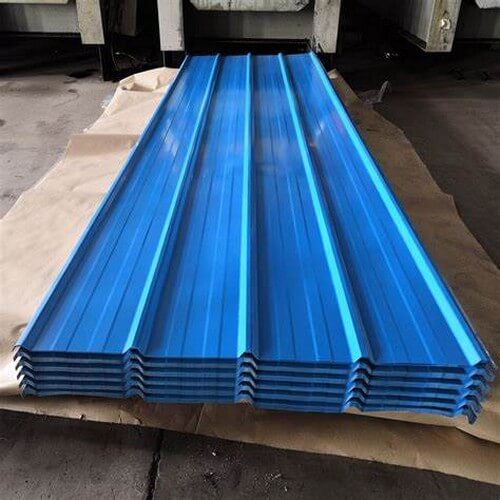

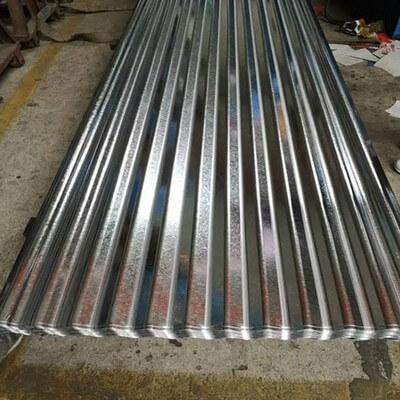

Z60 Metal Roof Sheets Prepainted Galvanized Corrugated Roofing Sheet

There are two main connection methods for corrugated steel plates, namely longitudinal connection and horizontal connection.

Longitudinal connection: The longitudinal lap of the corrugated steel plate should be located at the purlin or wall beam, and both plates should extend to the supporting member. The lap length should be 350mm for high-wave roof panels; 250mm for low-wave roof panels with a roof slope ≤10; 200mm for low-wave roof panels with a roof slope>10; and 120mm for wall panels. When the roof is lapped, a full-length sealing tape is required between the board seams.

Horizontal connection: Generally, it can be divided into three ways: lap, undercut, and snap. When the building has special functions and requirements, the ordinary connection method can also be improved, and the connection method for different special requirements can be researched and developed for actual engineering. Secondly, the transverse overlap direction of the profiled steel plate should be the same as the prevailing wind direction, and the overlap should not be less than one wave. The lap joint is provided with a long sealing tape.

Product Specification of Z60 Metal Roof Sheets Prepainted Galvanized Corrugated Roofing Sheet

Commodity	Courragated roofing sheets
Type of coating	Hot dipped galvanized/Prepainted
Standard	JIS G3302/ASTM A653/EN10327/DIN17162
Grade	SGCC/CS-B/DX51D or equivalent
Types	Commercial/Drawing/Deep drawing/Structural quality
Surface treatment	Chromated/Skinpass/Oiled/Slightly oiled/Dry
Surface Finished	Minimized spangle/Regular spangle/Big spangle
Thickness	0.1mm-4mm
Color	Customized
Package	Standard packaging
Application	Industrial panels, roofing and siding for painting

call us now！ +86-18365977887 Or write to us at Echo@kuaimasteel.com

Galvanized Corrugated Sheet Production line

Shandong Kuaima Steel Co., Ltd. has advanced special smelting, investment casting, pipe making and other production equipment. The company has 15 advanced production lines, which can independently produce hot/cold rolled steel, Galvanized Corrugated Sheet，galvalume steel, galvanized steel, prepainted steel and stainless steel coils, strips, plates, plates, pipes, bars and other products. The standing inventory is more than 450,000 tons to meet the customer's demand for delivery time.
