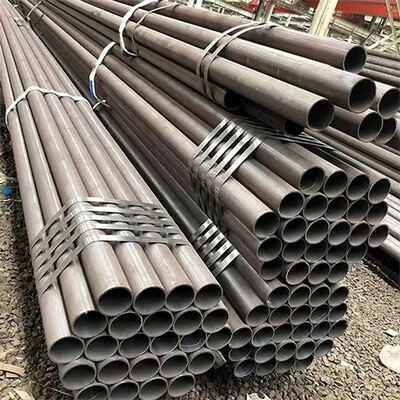

Boiler steel pipe

Boiler pipe introduction

1、Boiler Pipe Size，Boiler pipe size range complied with the different ASTM standard required. Like ASTM A106 or ASTM 179, 192 etc.

But most of the boiler pipe size is small, outer diameter usually less than 1 1/2” (1/4”, 1/2”, 3/4”, 1” and 1 1/2”). Then 2”, 2 1/2”, 3” and maximum to 4”.

2、Medium and high pressure boiler pipe differences，Based on different working temperature, the medium or high pressure boiler pipe shall be used. Normally classified as below cases:

a. The operation temperature of general boiler pipe is lower than 450℃. The medium pressure boiler pipeline mainly adopts hot rolling process or cold drawing process.
b. High pressure boiler pipes are often used in high temperature and high pressure conditions. Under the action of high temperature flue gas and steam, the pipe will occur oxidation and corrosion. It is required high pressure boiler pipe that has high durable strength, high oxidation corrosion resistance and good tissue stability.

Chemical Composition and Mechanical Properties of Boiler steel pipe

Speci -cation	Grade	Chemical Composition [%]															Mechanical Properties
		C		Mn		P	S	Si		Cr		Mo		Cu	Ni	V	Yield Strength		Tensile Strength			% Elongation (G.L. 50 mm WT 8 mm) e (min.)
		C		Mn		P	S	Si		Cr		Mo		Cu	Ni	V	Min.		Min.
		Min	Max.	Min	Max.	Max.	Max.	Min.	Max	Min.	Max	Min.	Max	Max	Max	Max	PSI	MPa	PSI	MPa
SEAMLESS COLD DRAWN PRECISION STEEL TUBES FOR MECHANICAL APPLICATIONS/HYDRAULIC/PNEUMATIC POWER SYSTEMS
EN 10305-1/ EN10305-4	E 235 E 355		0.17 0.22		1.2 1.6	0.025 0.025	0.025 0.025		0.35 0.55							0.02 0.02		235 355		340 490	25 22
EN 10216-1	P195 TR1 P235 TR1		0.13 0.16		0.7 1.2	0.025 0.025	0.02 0.02		0.35 0.35		0.3 0.3		0.08 0.08	0.3 0.3	0.3 0.3			195 235		320 360	27 25
EN 10216-2	P235 GH		0.16		1.2	0.025	0.02		0.35		0.3		0.08	0.3	0.3	0.02
DIN 2391	St - 45 St - 45 St - 52	- - -	0.17 0.21 0.22	0.40 0.40 -	- - 1.60	0.025 0.025 0.025	0.025 0.025 0.025	- - -	0.35 0.35 0.55	- - -	- - -	- - -	- - -	- - -	- - -	- - -	NBK : 215 / GBK : - NBK : 255 / GBK : - NBK : 355 / GBK : -		NBK : 340 / GBK : 315 NBK : 440 / GBK : 390 NBK : 490 / GBK : 490		NBK : 470 NBK : 570 NBK : 630
ASTM A-519	SAE 1010 SAE 1018 SAE 1026 SAE 1035 SAE 1040 SAE 1518 SAE 1541 SAE 4130	0.08 0.15 0.22 0.32 0.37 0.15 0.36 0.28	0.13 0.20 0.28 0.38 0.44 0.21 0.44 0.33	0.30 0.60 0.60 0.60 0.60 1.10 1.35 0.40	0.60 0.90 0.90 0.90 0.90 1.40 1.65 0.60	0.040 0.040 0.040 0.040 0.040 0.040 0.040 0.040	0.050 0.050 0.050 0.050 0.050 0.050 0.050 0.040	- - - - - - - 0.15	- - - - - - - 0.35	- - - - - - - 0.80	- - - - - - - 1.10	- - - - - - - 0.15	- - - - - - - 0.25	- - - - - - - -	- - - - - - - -	- - - - - - - -	As per Customer requirements
BOILER/HEAT EXCHANGER/SUPERHEATER & CONDENSER TUBES
ASTM A179	-	0.06	0.18	0.27	0.63	0.035	0.035	-	-	-	-	-	-	-	-	-	26,000	180	47,000	325	35
ASTM A192		0.06	0.18	0.27	0.63	0.035	0.035	-	0.25	-	-	-	-	-	-	-	26,000	180	47,000	325	35
ASTM A 210	A-1 C	- -	0.27 0.35	- 0.29	0.93 1.06	0.035 0.035	0.035 0.035	0.10 0.10	- -	- -	- -	- -	- -	- -	- -	- -	37,000 40,000	255 275	60,000 70,000	415 485	30 30
ASTM A 213	T-11 T-12 T-22	0.05 0.05 0.05	0.15 0.15 0.15	0.30 0.30 0.30	0.60 0.61 0.60	0.025 0.025 0.025	0.025 0.025 0.025	0.50 - -	1.00 0.50 0.50	1.00 0.80 1.90	1.50 1.25 2.60	0.44 0.44 0.87	0.65 0.65 1.13	- - -	- - -	- - -	30,000 32,000 30,000	205 220 205	60,000 60,000 60,000	415 415 415	30 30 30
ASTM A335	P-11 P-12 P-22	0.05 0.05 0.05	0.15 0.15 0.15	0.30 0.30 0.30	0.60 0.61 0.60	0.025 0.025 0.025	0.025 0.025 0.025	0.50 - -	1.00 0.50 0.50	1.00 0.80 1.90	1.50 1.25 2.60	0.44 0.44 0.87	0.65 0.65 1.13	- - -	- - -	- - -	30,000 32,000 30,000	205 220 205	60,000 60,000 60,000	415 415 415	30 30 30
BS 3059 Pt I	320	-	0.16	0.30	0.70	0.040	0.040	0.10	0.35	-	-	-	-	-	-	-	28,000	195	46,000	320	69,500
BS 3059 Pt II	622-490	0.08	0.15	0.40	0.70	0.030	0.030	-	0.50	2.00	2.50	0.90	1.20	-	-	-	40,000	275	71,000	490	93,000
DIN 1629	St- 37.0 St - 52	- -	0.17 0.22	- -	- -	0.040 0.040	0.040 0.035	- -	- -	- -	- -	- -	- -	- -	- -	- -	WT 16mm = 235 / WT>16mm = 225 WT 16mm = 355 / WT>16mm = 345		350 -		- Long 21 / Trans 19
DIN 17175	St - 35.8 St - 45.8	- -	0.17 0.21	0.40 0.40	0.80 1.20	0.040 0.040	0.040 0.040	0.10 0.10	0.35 0.35	- -	- -	- -	- -	- -	- -	- -	WT 16mm = 235 / WT>16mm = 225 WT 16mm = 255 / WT>16mm = 245		360 410		480 530

Product Specification of Boiler steel pipe

High Pressure Boiler Pipe / Boiler Tube Seamless Steel Tube / Steel Pipe

Item

Boiler tube,high pressure boiler tube, carbon steel tube,

alloy steel tube,Seamless steel tube

Boiler pipe,high pressure boiler pipe, carbon steel pipe,

alloy steel pipe,seamless steel pipe

Standard

GB5310-2008,ASTM SA106,ASME SA210,ASME SA213

DIN17175-79,GB3087-2008

Material

Carbon steel grade:

ASTMA179,A192,A178 GR.C,A210 A1,ASTM A210 C,DIN 17175 ST35.8,

10#,20G,20mnG,25MnG,,19Mn5,ST45.8-III

Alloy steel grade:

ASTM A213 (T2,T11,T12,T22,T9),ASTM A200 T5,ASTM A199 (T11,T22),

16Mn,Q345A,Q345B,Q345C,Q345D,Q345E,15CrMoG, 12CrMo,15CrMo,

13CrMo44,10CrMo910,12CrMo195,X12CrMo91,12Cr2Mo,1Cr5Mo,15Mo3,

12Cr1MoVG,12Cr2MoWVTiB,10Cr9Mo1VNb

Dimensions

Out diameter: 10mm~3050mm

Wall Thickness: 1mm~300mm

Length:1m~15m or customize

Surface treatment

Black painted, black varnish, transparent oil, hot galvanized,

3PE,epoxy coating,BE,PE.HDPE,NACE etc.

Package

Standard export package,or as required

Application

Steel pipe can be used in the pipeline, thermal technology equipment,

industrial machinery, petroleum geological exploration, containers, chemical

industry, and special purpose

(1) general boiler tube is mainly used to produce water wall tube, water pipe,

superheated steam tube, locomotive boiler superheated steam pipe, large

and small pipe and tube arch brick, etc.

(2) high pressure boiler tube is mainly used to manufacture high-pressure

and ultrahighpressure boiler superheater tubes, reheater tube, airway,

such as main steam pipe.

call us now！ +86-18365977887 Or write to us at Echo@kuaimasteel.com

boiler steel pipe production line

Shandong Kuaima Steel Co., Ltd. has advanced special smelting, investment casting, pipe making and other production equipment. The company has 15 advanced production lines, which can independently produce cheap boiler steel pipe hot/cold rolled steel, galvanized steel, galvanized steel, prepainted steel and stainless steel coils, strips, plates, plates, pipes, bars and other products. The standing inventory is more than 450,000 tons to meet the customer's demand for delivery time.

hot sale product

high pressure boiler steel pipe	3 4 treat steel pipe for boiler
high pressure boiler steel pipe manufacturer	3 4 treated steel pipe for boiler
high-pressure boiler steel pipe	a106b seamless boiler steel pipe
large steel boiler pipe	3 stainless steel boiler exhaust pipe
p235gh boiler steel pipe	8 inch stainless steel boiler exhaust pipe
p235gh boiler steel pipe factory	8 inch stainless steel stove pipe for outdoor boiler
pressure boiler steel pipe	a106 seamless steel boiler pipe
sa106c boiler steel pipe	a106 seamless steel boiler pipe factory

china boiler steel pipe QUALITY INSPECTION

We have professional testing equipment. We have our own testing center laboratory to guarantee the quality of our products.

thickness
width
coating quality
chromatic aberration
paint
thickness
hardness
luster
tensile strength
Yield Strength

steel pipe for boiler application industry

Machinery manufacturing industry
Oil & Gas Industries
Construction industry
Shipbuilding industry
Chemical industry
Power Generation

Our main export countries

We are a world-renowned PPGI/prepainted galvanized steel coil exporter, Qatar, Ireland, Portugal,Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Italy, Libya, Ro-Fanaticism, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Philippines, Ghana, Slovakia, Germany,Saudi Arabia, Afghanistan, China, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece,Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus,Finland, Gabon, Iran, Canada, Argentina, Lebanon. other countries
